Product Details:
|
| Item: | Diesel Portable Electric Generator | Engine Model: | 177F/177FD |
|---|---|---|---|
| Displacement(cc): | 270 | Rated Voltage(V): | 110/120/220/240 |
| Rated Frequency(Hz): | 50/60 | Rated Output(kVA): | 3/3.2 |
| High Light: | 270cc Portable Electric Generator,3kw Portable Electric Generator,3kw diesel genset |
||

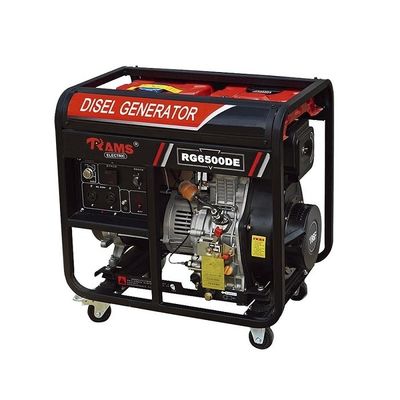

3kw Diesel Portable Electric Generator
MOQ:20units mixed model
Description
3kw Diesel Portable Electric Generator is a small power generation equipment, refers to diesel fuel, diesel engine as the prime mover to drive the generator power machinery. The whole unit is generally composed of diesel engine, generator, control box, fuel tank, storage battery for starting and control, protection device, emergency cabinet and other components. It can be used for daily power generation and emergency power generation in all kinds of homes, offices, large, medium and small enterprises.
Features
• High conversion rate
100% copper alternator, class F insulation, high conversion rate.
• Stable output
Smart AVR controller ensures stable voltage and less voltage waveform distortion.
• Digital panel
Digital intelligent control panel with display of voltage, frequency and running time, makes easy maintenance.
• Easy carrying
An open frame configuration means it’s easy to move and use.
• Wide application
Various output sockets are available to meet all customers’ requirements
• Engine: 178F/178FD
• Noise Level: 72 dBA
• Engine type:Diesel
• Starting Watts: 3600
• Rated Watts: 3000
• Starting System: Manual/Electric
• Fuel Tank Capacity: 12.5 L
MOQ:20units mixed model
| Model | RG4000DE |
| Rated Frequency[Hz] | 50 60 |
| Rated Voltage[v] | 220,230,240,110/220,115/230,120/240 |
| Rated Output Power[Kva] | 2.8 3.0 |
| Max Output Power[Kva] | 3.0 3.3 |
| Phase Number | Single/Three |
| Excitation Transistorized | Self-excitation , brush |
| Power Factor Cos Φ | 1 |
| Insulation Grade | F |
| Fuel Tank Capacity[L] | 12.5 |
| Frame Type | 25 * 25mm Round tube frame |
| Engine Model | X: RG178F |
| XE: RG178FE | |
| Starting System | X: Recoil starter ;XE: Electric starter |
| Engine Type | 1-Cylinder ,4-Stroke ,Air-cooled, Veritical |
| Broke * Stroke[mm] | 78 * 62 |
| Displacement[L] | 0.296 |
| Compression Ratio | 20:01 |
| Rated Rotation Speed [rpm] | 3000 3600 |
| Rated Power[Kw] | 3.7 4.0 |
| Lube[L] | 1.1 |
| Fuel Consumption[g/kwh] | 275 280 |
| Fuel Type | 0#(summer), -10#(winter), Diesel oil |
| Lube | SAE10W30 ( above CD grade ) |
| Optional Standard | ATS |
| Remote control | |
| Digital Smart Panel | |
| Wheel and handle | |
| Overall Diemension [mm](L*W*H) | 660*460*540 |
| Net Weight[kg] | X:63 XE:72 |
• RG4000DE Diesel Generator
• Wheel Kit
