11.3L Petrol Powered Welder 120A DC Permanent Magnet Type L Gas Driven Welders

I'm Online Chat Now

11.3L Petrol Powered Welder 120A DC Permanent Magnet Type L Gas Driven Welders

11.3L Petrol Powered Welder 120A DC Permanent Magnet Type L Gas Driven Welders
11.3L Petrol Powered Welder 120A DC Permanent Magnet Type L Gas Driven Welders 11.3L Petrol Powered Welder 120A DC Permanent Magnet Type L Gas Driven Welders

Large Image :  11.3L Petrol Powered Welder 120A DC Permanent Magnet Type L Gas Driven Welders

Product Details:
Place of Origin: CHINA
Brand Name: RAMS
Certification: CE
Model Number: RWG120L
Payment & Shipping Terms:
Minimum Order Quantity: 100 units mixed model
Packaging Details: Carton/Pallet/Wooden case
Delivery Time: 25 work days
Payment Terms: T/T, L/C

11.3L Petrol Powered Welder 120A DC Permanent Magnet Type L Gas Driven Welders

Description
Model Number: RWG120L DC Welding Current: 120A
Auxiliary Output: DC/AC 2-3kw Fuel Tank Capacity: 11.3L
Engine Model: 170F DC Welding Voltage: 22-28V
High Light:

120A Petrol Powered Welder

,

3.6L Petrol Powered Welder

,

3.6L Gas Driven Welders

120A Petrol Welding Generators Medium Frequency Permanent Magnet Type L

MOQ:24units mixed model



Description

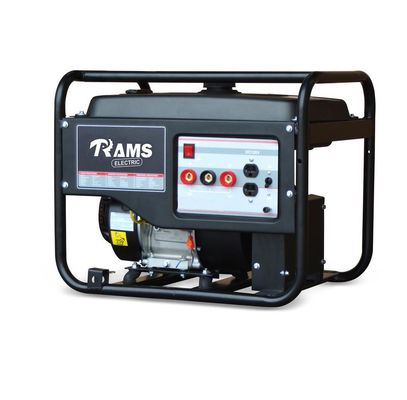

RWG120L from P1 power equipment of a gasoline inverter welding machine, dc inverter welding machine is a built-in special designed inverter generators.



Features include



• Dual function, inverter welding machine: built-in dc welding machine, also can work, used in electric tools, electric power equipment, etc
• suitable for all kinds of welding material: 100 a duty ratio is 35%
• 11.3L large fuel tank: no need to stop frequently to generate electricity
• Strong open frame: protect it from shock and damage to knock
• budget friendly: relative to two separate equipment procurement, more money
• Peace of mind: 2 year warranty, 1 year warranty (clause) business
• advantages include built-in dc welder dual function generator
• generator built-in dc welding power source, output than communication more smooth, more stable arc, less spatter, when welding deposition faster, stronger penetration of weld metal.

• welding electrode diameter and thickness

This heavy welding generator is suitable for the electrode diameter from 1.6 mm to 2.5 mm, the thickness of the welding welding between 1.5 mm to 3.2 mm wide applications.

• Open gasoline generator

Weighs 61.75 kg, RWG120L open framework, in order to protect it from bumps and knock against.

• Multiple sockets

This powerful welding generator equipped with 13 a and 1 * 1 * 230 v to 125 v socket 16 a, make sure you always have more than one outlet, provide any need of power.

• Work cycle information

This dc welding generator in 100 when the duty ratio is 35%. Easy to use control panel to you control welding parameters are needed, use very convenient also, at the same time put on welding gloves.

• Powerful multitasking

The welder generator is a kind of multi-functional seal equipment. Due to the built-in dc welding generator, it can be used as a series of power equipment, such as power tools, working lamp or emergency power supply, especially suitable for farms, construction sites, or other industry Settings.

• Cheap price, saving space

Built-in dc welding equipment, independent of the welding generator will save money for you, than to buy two separate equipment, will also save the storage space. This also means that when you carry it between different work, what you carry less.


Specifications

Brand: RAMS
Manufacturers Part Number: RWG120L

MOQ:24units mixed model

Rated Output 3kW / 3000w - 3.2kW / 3200w
Full Load Run Time 4 hours
Output Current 50amp - 120amp (DC)
Open Circuit Voltage 70V
Generator Duty Cycle 100amp @ 35%
Electrode Diameter 1.6 - 2.5 mm
Welding Thickness 1.5 3.2 mm
Generator Supply 230V / 115V
Materials Metal / Plastic
Full Load Run Time 4 hours
Output Current 50amp - 120amp (DC)
Open Circuit Voltage 70V
Generator Duty Cycle 100amp @ 35%
Starting Method Recoil
Materials Metal / Plastic
Fuel Type Petrol
Fuel Tank 11.3 L
Fully Assembled Dimensions (H x W x L) 590 x 470 x 620 mm (handle folded) 590 x 470 x 900 mm (handle unfolded)
Package Dimensions (H x W x L) 620 x 560 x 730 mm
Net Weight 61.75 kg
Gross Weight 64.5 kg

Package Includes

• WG120A Welder
