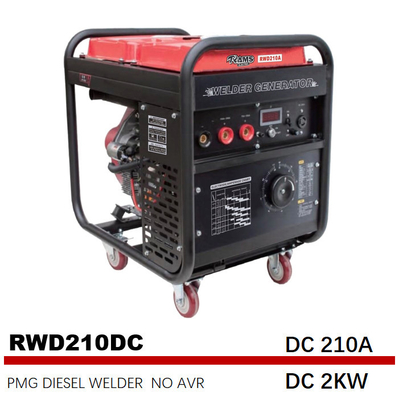

192FE Diesel Engine Driven Welder 12.5L Fuel Tank Welding Machine

I'm Online Chat Now

192FE Diesel Engine Driven Welder 12.5L Fuel Tank Welding Machine

192FE Diesel Engine Driven Welder 12.5L Fuel Tank Welding Machine
192FE Diesel Engine Driven Welder 12.5L Fuel Tank Welding Machine 192FE Diesel Engine Driven Welder 12.5L Fuel Tank Welding Machine 192FE Diesel Engine Driven Welder 12.5L Fuel Tank Welding Machine 192FE Diesel Engine Driven Welder 12.5L Fuel Tank Welding Machine 192FE Diesel Engine Driven Welder 12.5L Fuel Tank Welding Machine 192FE Diesel Engine Driven Welder 12.5L Fuel Tank Welding Machine

Large Image :  192FE Diesel Engine Driven Welder 12.5L Fuel Tank Welding Machine

Product Details:
Place of Origin: CHINA
Brand Name: RAMS
Certification: CE
Model Number: RWD210AC
Payment & Shipping Terms:
Minimum Order Quantity: 100 units mixed model
Packaging Details: Carton/Pallet/Wooden case
Delivery Time: 25 work days
Payment Terms: T/T, L/C

192FE Diesel Engine Driven Welder 12.5L Fuel Tank Welding Machine

Description
Model Number: RWD210AC DC Welding Current: 210A
Auxiliary Output: AC 2-3kw DC Welding Voltage: 70-75
Welding Current Range: Unadjustable Duty Cycle At Rated Amps Avalible: 60% @210A
Fuel Tank Capacity: 12.5L Fuel Type: Diesel
Voltage: 120V/220V/240V Engine Model: 192FE
High Light:

12.5L Diesel Engine Driven Welder

,

192FE Diesel Engine Driven Welder

,

12.5L diesel welding machine

210A Medium Frequency Permanent Magnet Generator Electric start

MOQ:12units mixed model





Features:



Application scenario: gas pipeline and railway engineering

Applicable electrode: all electrodes of ordinary power frequency welder

Welding smoothness: 500HZ medium frequency to DC welding effect is better

Auxiliary power supply: welding, power generation at the same time

Conversion efficiency: efficiency up to 90%

Excitation mode: rare earth permanent magnet, no carbon brush

Rotor: rare earth permanent magnet, high magnetic, small copper loss, small size, light weight, movable wheel


Unit Specification
DC Welding Current 210A
Non-loading Voltage(V) 70-75
Welding Current Range 50-210
Duty Cycle at rated amps avalible 60% @210A
Welding Process SMAW(MMA / GTAW(TIG)
Welding Rod diameter 1.5-4.0mm
Fuel Tank Capacity 12.5L
Fuel type diesel
Generator Specification
Power rated output (single phrase) DC 1.6kw
Auxiliary Output(Optional) AC 2-3kw
Voltage 120V/220V/240V
Receptacles 1ps 16A
Dimensions&Weights
Carton size(mm) 730*530*640mm
Net/Gross Weight(kg) 108/112kgs
Q'ty 20"/40"/40"H 93/198/264
Engine Specification
Engine Model 192FE
Start Method Electric start
Borex stroke mm 92*75
Horsepower/displacement 490cc
Ignition System Compression Ignition



MOQ:12units mixed model
