Product Details:
|
| Model Number: | RNG210S | DC Welding Current: | 210A |
|---|---|---|---|
| Auxiliary Output: | DC/AC 2-3kw | Duty Cycle At Rated Amps Avalible: | 60% @210A |
| Fuel Tank Capacity: | 12.5L | Engine Model: | 190F |
| Fuel Type: | Gasoline | DC Welding Voltage: | 70-75V |
| High Light: | Excitation Petrol Welding Generators,190F Petrol Welding Generators,210A Petrol Welding Machine |
||

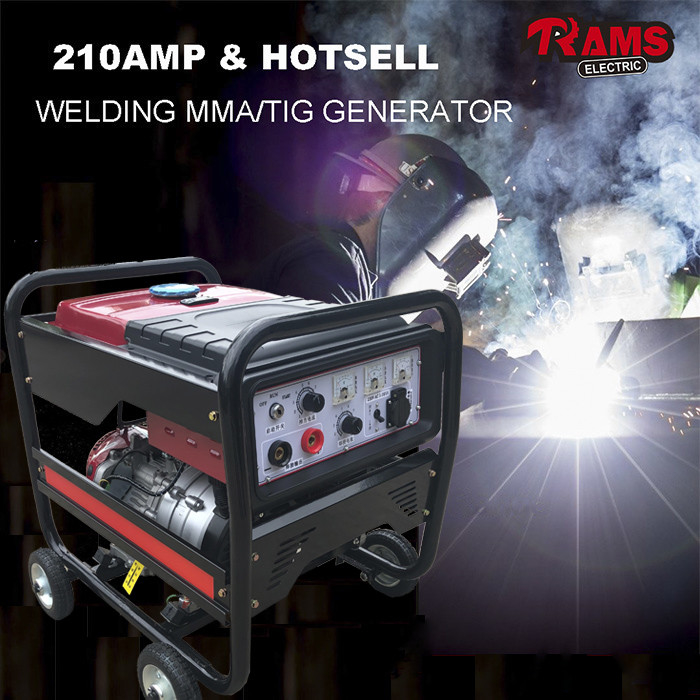

RNG210S Unique Excitation & Medium frequency alternator
MOQ:12units mixed model
Description
| Unit Specification | |
| DC Welding Current | 210A |
| Non-loading Voltage(V) | 70-75 |
| Welding Current Range | 60-210 |
| Duty Cycle at rated amps avalible | 60% @210A |
| Welding Process | MMA /TIG |
| Welding Rod diameter | 1.5-4.0mm |
| Fuel Tank Capacity | 12.5L |
| Fuel type | gasoline |
| Generator Specification | |
| Power rated output (single phrase) | DC 1.6kw |
| Power Max output (single phrase) | DC 2kw |
| Voltage | 120V/220V/240V |
| Receptacles | 1ps 16A |
| Dimensions&Weights | |
| Carton size(mm) | 720*540*570mm |
| Net/Gross Weight(kg) | 83/85.5kgs |
| Q'ty 20"/40"/40"H | 128/256/256 |
| Engine Specification | |
| Engine Model | 190FE Gasoline engine |
| Start Method | Electric start |
| Borex stroke mm | 90*66 |
| Horsepower/displacement | 420cc |
| Ignition System | CDI |
