Product Details:
|
| Model Number: | RWG210A | DC Welding Current: | 210A |
|---|---|---|---|
| Auxiliary Output: | DC/AC 2-3kw | DC Welding Voltage: | 70-75 |
| Welding Current Range: | Unadjustable | Duty Cycle: | 60% @210A |
| Welding Rod Diameter: | 1.5-4.0mm | Fuel Tank Capacity: | 25l |
| Fuel Type: | Gasoline | Voltage: | 120V/220V/240V |
| Engine Model: | 190FE | Start Method: | Electric Start |
| High Light: | 210A Gasoline Powered Welder,PMG Gasoline Powered Welder,190FE gasoline welder generator |
||

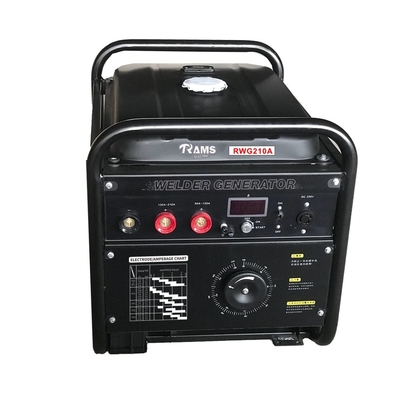

210A 2.0KW RWG Portable Petrol Welding Generator Electric start
MOQ:12units mixed model
Description
The Petrol Welding Generator is designed for high power and durability. Ideal for farms, construction sites, or any job that requires electrical power and CC (constant current) stick welding. Producing up to 210 Amps of DC output with a 60% duty cycle, it is suitable for welding from 6010 rods up to 7024 rods. Convenient back wheels allow for maneuverability for portable onsite welding and can also be used for emergency back-up power when necessary. Featuring incredible 15HP engine, with 2000 watts of DC output, this welder generator will provide you with the power you need wherever you need it. Petrol Welding Generator is an excellent tool for job applications at your workshop, ranch, or farm - and is backed by a 2-year engine warranty.
Features
| Unit Specification | |
| DC Welding Current | 210A |
| Non-loading Voltage(V) | 70-75 |
| Welding Current Range | 60-210 |
| Duty Cycle at rated amps avalible | 60% @210A |
| Welding Process | MMA /TIG |
| Welding Rod diameter | 1.5-4.0mm |
| Fuel Tank Capacity | 25L |
| Fuel type | gasoline |
| Generator Specification | |
| Power rated output (single phrase) | DC 1.6kw |
| Power Max output (single phrase) | DC 2kw |
| Voltage | 120V/220V/240V |
| Receptacles | 1ps 16A |
| Dimensions&Weights | |
| Carton size(mm) | 720*540*570mm |
| Net/Gross Weight(kg) | 83/85.5kgs |
| Q'ty 20"/40"/40"H | 128/256/256 |
| Engine Specification | |
| Engine Model | 190FE Gasoline engine |
| Start Method | Electric start |
| Borex stroke mm | 90*66 |
| Horsepower/displacement | 420cc |
| Ignition System | CDI |
Package Includes
• WG210A Welder Generator
• The toolkit
QUESTIONS & ANSWERS
Q Are replacement parts available for this generator welder?
A Yes, replacement parts are available with same day shipping and service centers located nationwide.
Q Can I use 6010 rod to weld?
A Yes, The WG210A welds with 6010 Rod.
Q Is this engine driven welder electric start?
A Yes, the engine driven welder generator comes standard with electric start.
Q What is the duty cycle?
A The duty cycle of this welder generator is 60% duty cycle at 200 Amps.
Q What is the fuel tank capacity?
A This welder generator's fuel tank capacity is 6.5 gallons or 25 liters.
Q How many hours can this run?
A This welder generator can run up to 10 hours.
Q You mention PMG on the specs. What does this mean ?
A PMG refers to Permanently Magnetized Generator. In short, this gives you the ability to weld and at the same time use a grinder, drill, or tool.
Q Why is my grinder is not working on the welder?
A This generator uses DC power. Always check to make sure your grinder can use DC power. Most grinder manufacturers will state this on the specification label as 120V AC/DC Grinder.
Q Can I run a grinder?
A Yes, you can run a grinder with this welder generator, but it must be DC compatible.
Q What is the engine size of this generator welder?
A This generator welder is powered by a 15HP engine (420cc). It is a commercial grade OHV engine built standard with a low oil sensor, electric start and 2 year engine warranty.
Q What is the warranty ?
A This welder has a 2 year engine warranty and 1 year total warranty.
Q How much does it weigh?
A This welder weighs 183lbs.
Q Can this welder do TIG?
A Yes.
