Product Details:
|
| Model Number: | RNG210S | DC Welding Current: | 210A |
|---|---|---|---|
| Auxiliary Output: | DC/AC 2-3kw | Duty Cycle At Rated Amps Avalible: | 60% @210A |
| Fuel Tank Capacity: | 12.5L | Engine Model: | 190F |
| Fuel Type: | Gasoline | DC Welding Voltage: | 70-75V |
| High Light: | 190F Gas Engine Welder,12.5L Gas Engine Welder,190F gas powered welding machine |
||

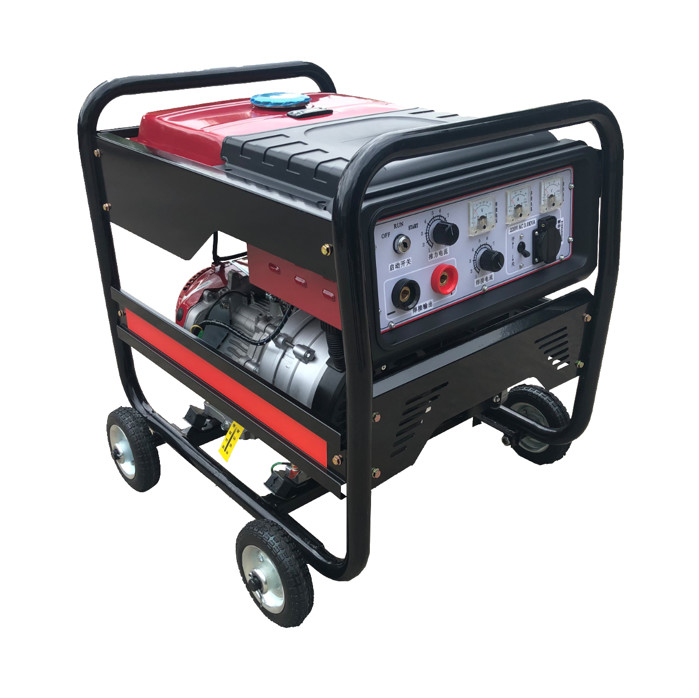

RNG210S Petrol Welding Generators Medium Frequency Permanent Magnet
MOQ:12units mixed model
Description
• Wide range of application, can be used as a professional oil and gas pipeline construction units, railways, municipal pipe network, chemical plants, power plants, steel plant construction and emergency maintenance.
• Medium frequency three-phase rectifier, smooth current, good dynamic characteristics, fast response (1-3ms). Can meet different welding requirements, and is suitable for all kinds of acid, alkaline electrode and argon arc welding operations.
• Permanent magnet technology, with small size, light weight, small iron loss, high efficiency, efficiency up to 90%.
• Abandon the IGBT(insulated gate bipolar transistor) with high failure rate and adopt the built-in control mode, which greatly improves the reliability of the control system.
• Dual output, can meet the requirements of welding and using small power tools.
• Removable wheel set, easy to move.
• The project has been supported by the Innovation Fund of the Ministry of Science and Technology.
| Unit Specification | |
| DC Welding Current | 210A |
| Non-loading Voltage(V) | 70-75 |
| Welding Current Range | 60-210 |
| Duty Cycle at rated amps avalible | 60% @210A |
| Welding Process | MMA /TIG |
| Welding Rod diameter | 1.5-4.0mm |
| Fuel Tank Capacity | 12.5L |
| Fuel type | gasoline |
| Generator Specification | |
| Power rated output (single phrase) | DC 1.6kw |
| Power Max output (single phrase) | DC 2kw |
| Voltage | 120V/220V/240V |
| Receptacles | 1ps 16A |
| Dimensions&Weights | |
| Carton size(mm) | 720*540*570mm |
| Net/Gross Weight(kg) | 83/85.5kgs |
| Q'ty 20"/40"/40"H | 128/256/256 |
| Engine Specification | |
| Engine Model | 190FE Gasoline engine |
| Start Method | Electric start |
| Borex stroke mm | 90*66 |
| Horsepower/displacement | 420cc |
| Ignition System | CDI |
