Product Details:
|
Model Number: | RWG250AC | DC Welding Current: | 250A |
---|---|---|---|
DC Welding Voltage: | 70-75V | Auxiliary Output: | AC 3kw |
Welding Current Range: | 70-250A | Duty Cycle At Rated Amps Avalible: | 60% @250A |
Fuel Tank Capacity: | 25L | Receptacles: | 1ps 16A |
Engine Model: | 192FE | Start Method: | Electric Start |
High Light: | 250 Amp Arc Welding Generators,25L Arc Welding Generators,250 Amp Generator |

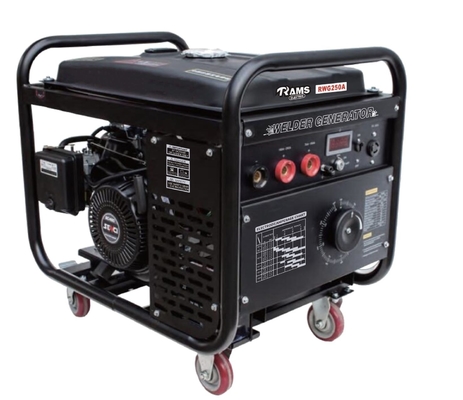

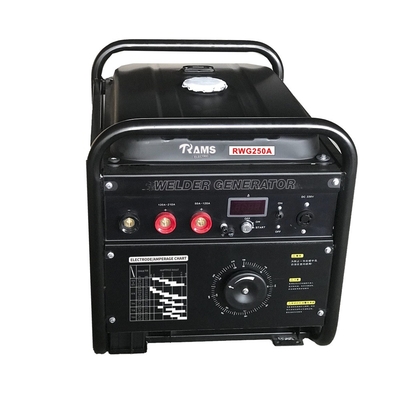

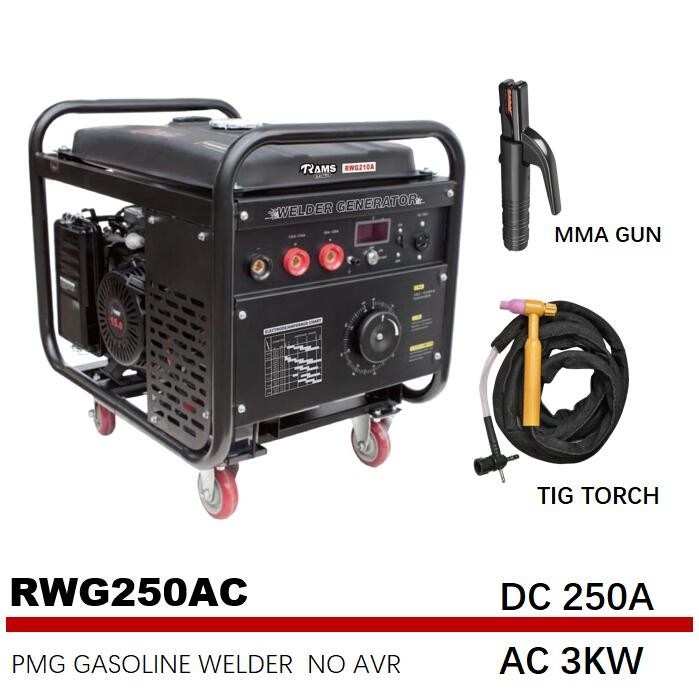

250A Arc Medium Frequency Petrol Welding Generators
MOQ:12units mixed model
Feature
• Applicability is wide and can be used as a major units of oil and gas pipeline construction, railway, municipal pipeline, chemical plants, power plants, steel mills in construction and emergency maintenance.
• Using medium frequency three-phase rectifier, current is smooth, good dynamic characteristics, fast response speed (1-3 ms) can satisfy the different welding requirements, and are suitable for all kinds of acidic and alkaline electrode and argon arc welding.
• By adopting the technology of permanent magnet, has small volume, light weight, small iron loss, high efficiency, efficiency can reach 90%.
• Abandoned the higher failure rate of IGBT (insulated gate bipolar transistor) adopted invagination type control mode, greatly improve the reliability of the control system.
• Working condition of dual output, at the same time meet the requirements of welding and the use of small electric tools.
• Make our products all over the world each corner, let our service warm each user.
Performance Data | WELDER GENERATOR | |
Unit Specification | ||
DC Welding Current | 250A | |
Non-loading Voltage(V) | 70-75 | |
Welding Current Range | 70-250 | |
Duty Cycle at rated amps avalible | 60% @250A | |
Welding Process | SMAW(MMA / GTAW(TIG) | |
Welding Rod diameter | 1.5-5.0mm | |
Fuel Tank Capacity | 5.5gal | 25L |
Fuel type | Gasoline | |
Generator Specification | ||
Power rated output (single phrase) | DC 1.6kw | |
Power Max output (single phrase) | AC 3kw | |
Voltage | 120V/220V/240V | |
Receptacles | 16A/9A/8A | |
Dimensions&Weights | ||
Carton size(mm) | 720x540x570mm | |
Net/Gross Weight(kg) | 83/85.5kgs | |
Q'ty 20"/40"/40"H | 128/256/256 | |
Engine Specification | ||
Engine Model | 192FE | |
Start Method | Electric start | |
Borex stroke mm | 92*68 | |
Horsepower/displacement | 456cc | |
Ignition System | CDI |
MOQ:12units mixed model
