Product Details:
|
Model Number: | RNG210DE | DC Welding Current: | 210A |
---|---|---|---|
Auxiliary Output: | DC/AC 2-3kw | DC Welding Voltage: | 50 ~ 210 |
Fuel Tank Capacity: | 12.5L | Fuel Type: | Diesel |
Engine Model: | 192F | Start Method: | Electric Start |
High Light: | 192F Diesel Powered Welding Machine,12.5L Diesel Powered Welding Machine,12.5L diesel powered welder generator |

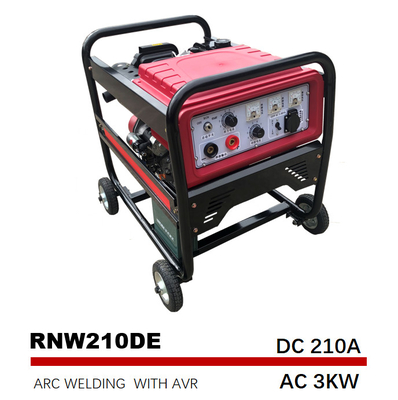

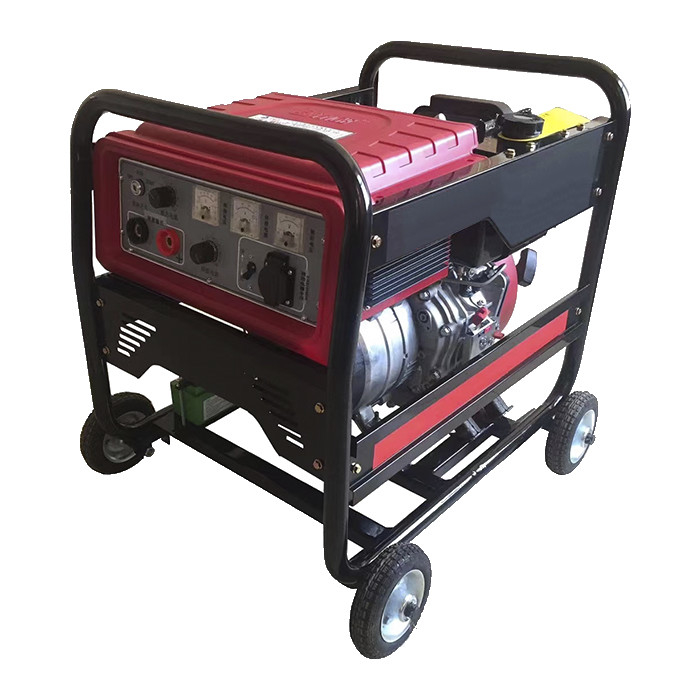

RNG210DE Diesel Welding Generators Excitation Electric start
MOQ:12units mixed model
Features:
Use a pair of machines
• Power generation and welding technology is adopted, which means power generation + welding in the real sense. One machine is dual-purpose.
• Can achieve the ideal, let you enjoy more economic benefits
• Synchronous use
• The load performance is good, and the power supply can be carried out at the same time during electric welding. The electric welding operation does not affect the voltage and wave type of power generation, so as to improve the working efficiency and facilitate the use
Excellent welding
• IGBT chopping, pulse width modulation and reactor smoothing technology are adopted to make the welding voltage waveform more stable
• When welding, the current is only zero, the current fluctuation is small, and the weld quality is high
Electricity
• The application of AVR technology and damping coil enables the machine to achieve the waveform of welding voltage
• No floating welding current means high-quality welding operation
Ease of operation
• The lightweight and concise design improves the field operability of the machine and saves a lot of storage space
• At the same time, four durable wheels are easier to transport
Apply
• Easy arc striking, stable arc, convenient adjustment of welding current and large adjustment range
• It can be applied to different electrode diameters and welding environments, making the welding operation more convenient
Unit Specification | |
DC Welding Current | 210A |
Non-loading Voltage(V) | 70-75 |
Welding Current Range | 50-210 |
Duty Cycle at rated amps avalible | 60% @210A |
Welding Rod diameter | 1.5-4.0mm |
Fuel Tank Capacity | 12.5L |
Fuel type | diesel |
Generator Specification | |
Power rated output (single phrase) | DC 1.6kw |
Auxiliary Output(Optional) | DC/AC 2-3kw |
Voltage | 120V/220V/240V |
Receptacles | 1ps 16A |
Dimensions&Weights | |
Carton size(mm) | 730*530*640mm |
Net/Gross Weight(kg) | 108/112kgs |
Q'ty 20"/40"/40"H | 93/198/264 |
Engine Specification | |
Engine Model | 192FE |
Start Method | Electric start |
Borex stroke mm | 92*75 |
Horsepower/displacement | 490cc |
Ignition System | Compression Ignition |
