Product Details:
|
| Item: | Fire Fighting Pumps | Max Flow[m³/h: | 5 |
|---|---|---|---|
| Max Head（m）: | 65 | Inlet（mm）: | 40 |
| Outle（mm）: | 40 | Suction（m）: | 7 |
| Power: | Diesel | Engine Type: | 1-cylinder,4-stroke,air-cooled |
| Model: | 1.5X1.5-171 | Displacemen（ml): | 296 |
| High Light: | 40mm Inlet High Lift Water Pump,40mm Outlet High Lift Water Pump,40mm Outlet Diesel Engine Fire Pump |
||

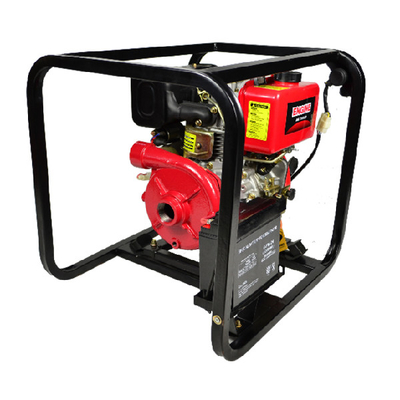

1.5 inch High lift cast iron pump Diesel engine
MOQ:20units mixed model
Features
• High lift and large flow
• Mountain pumps, landscaping
• The operation is simple
• 1-cylinder,4-stroke,air-cooled
| Power | Diesel engine |
| Name | High lift cast iron pump |
| Model | 1.5X1.5-171 |
| Inlet(mm) | 40 |
| Outle(mm) | 40 |
| Max flow[m³/h] | 23 |
| Max head(m) | 65 |
| Suction(m) | 7 |
| Speed[rpm] | 3600 |
| Engine model | 178F |
| Engine type | 1-cylinder,4-stroke,air-cooled |
| Displacemen(ml) | 296 |
| Ratedpower[KW(Hp)] | 4.5(6) |
| Starting system | Recoil starter/Electric starter |
| Continuous working time[h] | 8 |
| Fuel tank capacity(L) | 3.5 |
| lube oil capacity(L) | 1.1 |
| Overall dimension[mm] | 560X450X550 |
| Package size(mm) | 562X470X570 |
| Net weight(kg) | 60 |
| Gross weight(kg) | 61 |
MOQ:20units mixed model
