Product Details:
|
| Item: | Fire Fighting Pumps | Inlet（mm）: | 100 |
|---|---|---|---|
| Outle（mm）: | 100 | Suction（m）: | 7 |
| Power: | Diesel | Engine Type: | 1-cylinder,4-stroke,air-cooled |
| High Light: | 4x4 inch Fire Fighting Pumps,100mm Fire Fighting Pumps,Cast Iron Pumps |
||

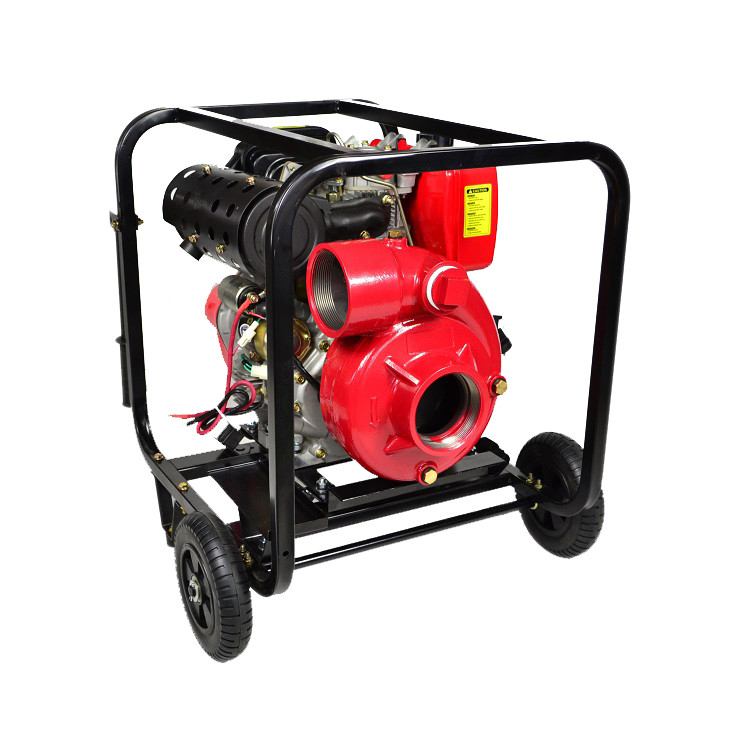

4 inch High lift cast iron pump Diesel engine
MOQ:20units mixed model
Features
• High lift and large flow
• Mountain pumps, irrigation, etc
• The operation is simple
• 1-cylinder,4-stroke,air-cooled
| Power | Diesel engine | ||
| Name | High lift cast iron pump | ||
| Model | 4X4-150 | 4X4-150-8 | 4X4-170-8 |
| Inlet(mm) | 100 | 100 | 100 |
| Outle(mm) | 100 | 100 | 100 |
| Max flow[m³/h] | 130 | 94 | 90 |
| Max head(m) | 40 | 40 | 52 |
| Suction(m) | 7 | ||
| Speed[rpm] | 3600 | ||
| Engine model | 195F | 192F | 192F |
| Engine type | 1-cylinder,4-stroke,air-cooled | ||
| Displacemen(ml) | 532 | 498 | 498 |
| Ratedpower[KW(Hp)] | 9.2(15) | 8.5(13) | 8.5(13) |
| Starting system | Recoil starter/Electric starter | ||
| Continuous working time[h] | 8 | ||
| Fuel tank capacity(L) | 5.5 | ||
| lube oil capacity(L) | 1.65 | ||
| Overall dimension[mm] | 630X530X590 | ||
| Package size(mm) | 640X540X605 | ||
| Net weight(kg) | 108 | 105 | 105 |
| Gross weight(kg) | 109 | 106 | 106 |
MOQ:20units mixed model
