Product Details:
|
| Item: | Fire Fighting Pumps | Max Flow[m³/h: | 33 |
|---|---|---|---|
| Max Head（m）: | 95 | Inlet（mm）: | 50 |
| Outle（mm）: | 50 | Suction（m）: | 7 |
| Power: | Diesel | Engine Type: | 1-cylinder,4-stroke,air-cooled |
| Model: | 2X2-208 | Displacemen（ml): | 456 |
| High Light: | 33m3/hr Fire Fighting Pumps,50mm Fire Fighting Pumps,Diesel Fire Pumps |
||

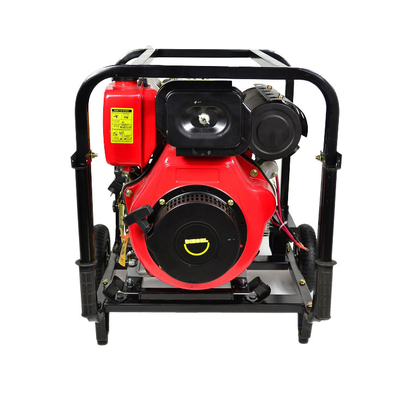

2 inch High lift cast iron pump Diesel engine
MOQ:20units mixed model
Features
• High lift and large flow
• Mountain irrigation, sprinkler irrigation, etc
• The operation is simple
• 1-cylinder,4-stroke,air-cooled
| Power | Diesel engine | |
| Name | High lift cast iron pump | |
| Model | 2X2-208 | |
| Inlet(mm) | 50 | |
| Outle(mm) | 50 | |
| Max flow[m³/h] | 33 | |
| Max head(m) | 95 | |
| Suction(m) | 7 | |
| Speed[rpm] | 3600 | |
| Engine model | 188F | |
| Engine type | 1-cylinder,4-stroke,air-cooled | |
| Displacemen(ml) | 456 | |
| Ratedpower[KW(Hp)] | 8.0(11) | |
| Starting system | Recoil starter/Electric starter | |
| Continuous working time[h] | 8 | |
| Fuel tank capacity(L) | 5.5 | |
| lube oil capacity(L) | 1.65 | |
| Overall dimension[mm] | 630*530*590 | |
| Package size(mm) | 640*540*605 | |
| Net weight(kg) | 100 | |
| Gross weight(kg) | 102 | |
