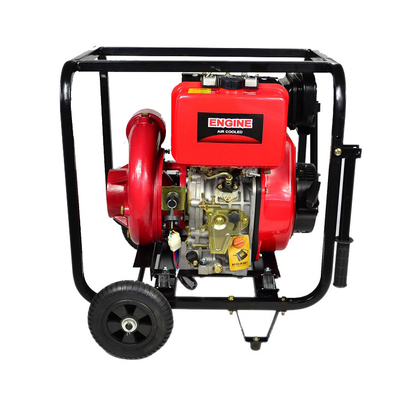

4X3 Inch High Lift Cast Iron Diesel Engine Pump For Fire Fighting 80mm Outlet

I'm Online Chat Now

4X3 Inch High Lift Cast Iron Diesel Engine Pump For Fire Fighting 80mm Outlet

4X3 Inch High Lift Cast Iron Diesel Engine Pump For Fire Fighting 80mm Outlet
4X3 Inch High Lift Cast Iron Diesel Engine Pump For Fire Fighting 80mm Outlet

Large Image :  4X3 Inch High Lift Cast Iron Diesel Engine Pump For Fire Fighting 80mm Outlet

Product Details:
Place of Origin: CHINA
Brand Name: RAMS
Certification: Fire protection certification
Model Number: 4 Inch
Payment & Shipping Terms:
Minimum Order Quantity: 100 units mixed model
Packaging Details: Carton/Pallet/Wooden case
Delivery Time: 25 work days
Payment Terms: T/T, L/C

4X3 Inch High Lift Cast Iron Diesel Engine Pump For Fire Fighting 80mm Outlet

Description
Item: Fire Fighting Pumps Inlet(mm): 100
Outle(mm): 80 Suction(m): 7
Power: Diesel Engine Type: 1-cylinder,4-stroke,air-cooled
High Light:

80mm Diesel Engine Pump

,

4X3 Diesel Engine Pump

,

80mm Outlet High Lift Pump

4 inch High lift cast iron pump Diesel engine

MOQ:20units mixed model





Features



• High lift and large flow

• Mountain pumps, irrigation, etc

• The operation is simple

• 1-cylinder,4-stroke,air-cooled



APPLICATION SCOPE:

• Agricultural production
• Mining and metallurgical industries
• Life water supply
• Waterlogging and drought resistance
• Landscaping
• The fire application

Power Diesel engine
Name High lift cast iron pump
Model 4X3-150 4X3-150-8 4X3-170-8
Inlet(mm) 100 100 100
Outle(mm) 80 80 80
Max flow[m³/h] 108 87 94
Max head(m) 45 45 60
Suction(m) 7
Speed[rpm] 3600
Engine model 195F 192F 192F
Engine type 1-cylinder,4-stroke,air-cooled
Displacemen(ml) 532 498 498
Ratedpower[KW(Hp)] 9.2(15) 8.5(13) 8.5(13)
Starting system Recoil starter/Electric starter
Continuous working time[h] 8
Fuel tank capacity(L) 5.5
lube oil capacity(L) 1.65
Overall dimension[mm] 630X530X590
Package size(mm) 640X540X605
Net weight(kg) 105 103 103
Gross weight(kg) 106 104 104



MOQ:20units mixed model
