Product Details:
|
| Model Number: | RWD210AC | DC Welding Current: | 210A |
|---|---|---|---|
| DC Welding Voltage: | 70-75V | Auxiliary Output: | AC 3kw |
| Welding Current Range: | 60-210A | Duty Cycle At Rated Amps Avalible: | 60% @210A |
| Fuel Tank Capacity: | 12.5L | Engine Model: | 192FE |
| High Light: | 210 amp 3kw portable generator,DIESEL 3kw portable generator,3kw Alternative Current Generator |
||

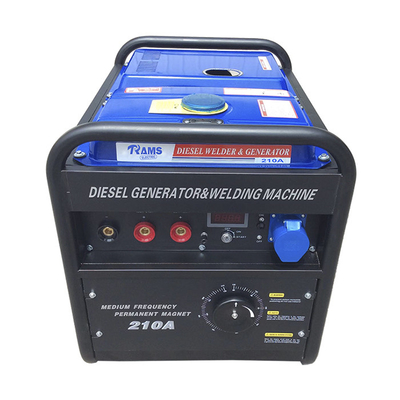

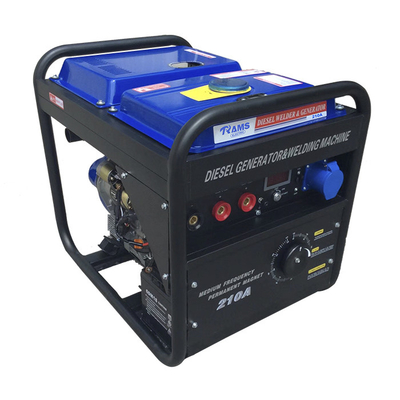

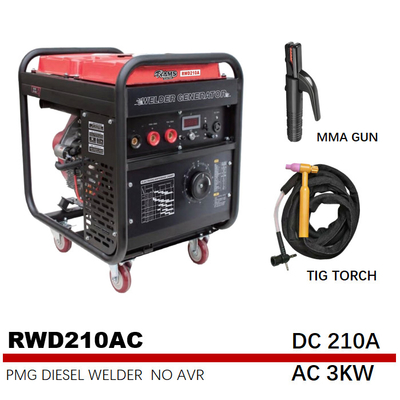

RWD210AC 210A Arc Medium Frequency DIESEL Welding Generators
MOQ:12units mixed model
• Welding and power camera, increase the diameter of the cylinder stroke, stable performance and fuel economy is durable.
• Copper, all large motor, high density pure copper coils, low resistance consumption, small distortion, waveform is stable, little splash a continuous arc welding machine.
• A large oil tank, can work long hours.
• Intelligent protection system, to prevent burning machine, thermal overload protection, etc.
• Widely used in welding, function, maintenance engineering, outdoor construction, factories, construction, manufacturing, shipping, etc.
| Unit Specification | |
| DC Welding Current | 210A |
| Non-loading Voltage(V) | 70-75 |
| Welding Current Range | 50-210 |
| Duty Cycle at rated amps avalible | 60% @210A |
| Welding Process | MMA /TIG) |
| Welding Rod diameter | 1.5-4.0mm |
| Fuel Tank Capacity | 12.5L |
| Fuel type | Diesel |
| Generator Specification | |
| Power Max output (single phrase) | AC 3kw |
| Voltage | 120V/220V/240V |
| Receptacles | 16A/9A/8A |
| Dimensions&Weights | |
| Carton size(mm) | 730x530x640mm |
| Net/Gross Weight(kg) | 108/112kgs |
| Q'ty 20"/40"/40"H | 93/198/264 |
| Engine Specification | |
| Engine Model | 192FE |
| Start Method | Electric start |
| Borex stroke mm | 92*75 |
| Horsepower/displacement | 499cc |
| Ignition System | Compression Ignition |
