Product Details:
|
Model Number: | RWG120L | DC Welding Current: | 120A |
---|---|---|---|
Auxiliary Output: | DC 2kw | Fuel Tank Capacity: | 11.3L |
Engine Model: | 170F | DC Welding Voltage: | 22-28V |
High Light: | 120A Stick Welding Generator,PMG Stick Welding Generator,PMG petrol generator 2kw |

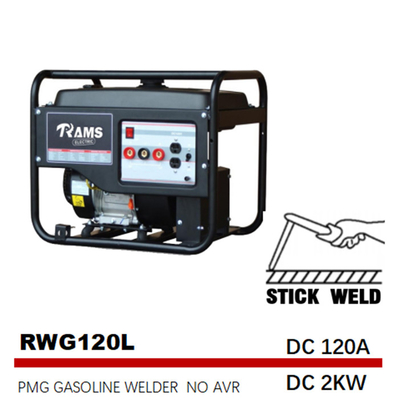

120A Petrol Welding Generators Medium Frequency Permanent Magnet Type L
MOQ:24units mixed model
Description
RWG120L from P1 power equipment of a gasoline inverter welding machine, dc inverter welding machine is a built-in special designed inverter generators.
Features include
•Dual function, inverter welding machine: built-in dc welding machine, also can work, used in electric tools, electric power equipment, etc
•suitable for all kinds of welding material: 120A duty ratio is 35%
• 11.3L large fuel tank: no need to stop frequently to generate electricity
•Strong open frame: protect it from shock and damage to knock
• budget friendly: relative to two separate equipment procurement, more money
•Peace of mind: 2 year warranty, 1 year warranty (clause) business
• advantages include built-in dc welder dual function generator
• generator built-in dc welding power source, output than communication more smooth, more stable arc, less spatter, when welding deposition faster, stronger penetration of weld metal.
• welding electrode diameter and thickness
This heavy welding generator is suitable for the electrode diameter from 1.6 mm to 2.5 mm, the thickness of the welding welding between 1.5 mm to 3.2 mm wide applications.
• Open gasoline generator
Weighs 61.75 kg, RWG120L open framework, in order to protect it from bumps and knock against.
• Multiple sockets
This powerful welding generator equipped with 13 a and 1 * 1 * 230 v to 125 v socket 16 a, make sure you always have more than one outlet, provide any need of power.
• Work cycle information
This dc welding generator in 120A when the duty ratio is 35%. Easy to use control panel to you control welding parameters are needed, use very convenient also, at the same time put on welding gloves.
• Powerful multitasking
The welder generator is a kind of multi-functional seal equipment. Due to the built-in dc welding generator, it can be used as a series of power equipment, such as power tools, working lamp or emergency power supply, especially suitable for farms, construction sites, or other industry Settings.
• Cheap price, saving space
Built-in dc welding equipment, independent of the welding generator will save money for you, than to buy two separate equipment, will also save the storage space. This also means that when you carry it between different work, what you carry less.
Rated Output | 3kW / 3000w - 3.2kW / 3200w |
Full Load Run Time | 4 hours |
Output Current | 50amp - 120amp (DC) |
Open Circuit Voltage | 70V |
Generator Duty Cycle | 120amp @ 35% |
Electrode Diameter | 1.6 - 2.5 mm |
Welding Thickness | 1.5 3.2 mm |
Generator Supply | 230V / 115V |
Materials | Metal / Plastic |
Full Load Run Time | 4 hours |
Output Current | 50amp - 120amp (DC) |
Open Circuit Voltage | 70V |
Generator Duty Cycle | 120amp @ 35% |
Starting Method | Recoil |
Materials | Metal / Plastic |
Fuel Type | Petrol |
Fuel Tank | 11.3 L |
Fully Assembled Dimensions (H x W x L) | 590 x 470 x 620 mm (handle folded) 590 x 470 x 900 mm (handle unfolded) |
Package Dimensions (H x W x L) | 620 x 560 x 730 mm |
Net Weight | 61.75 kg |
Gross Weight | 64.5 kg |
