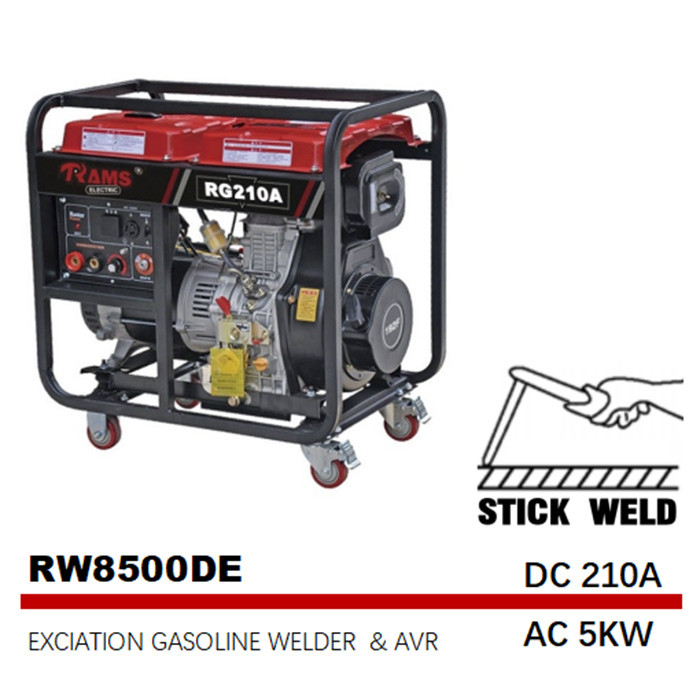

210A Diesel Stick Welding Generator Excitation Electric Start AC 5kw Single Phase

I'm Online Chat Now

210A Diesel Stick Welding Generator Excitation Electric Start AC 5kw Single Phase

210A Diesel Stick Welding Generator Excitation Electric Start AC 5kw Single Phase
210A Diesel Stick Welding Generator Excitation Electric Start AC 5kw Single Phase

Large Image :  210A Diesel Stick Welding Generator Excitation Electric Start AC 5kw Single Phase

Product Details:
Place of Origin: CHINA
Brand Name: RAMS
Certification: CE
Model Number: RW8500DE
Payment & Shipping Terms:
Minimum Order Quantity: 100 units mixed model
Packaging Details: Carton/Pallet/Wooden case
Delivery Time: 25 work days
Payment Terms: T/T, L/C

210A Diesel Stick Welding Generator Excitation Electric Start AC 5kw Single Phase

Description
Model Number: RW8500DE DC Welding Current: 210A
Auxiliary Output: AC 5kw Current Regulation Range: 70 ~ 220
Engine Model: 192F Displacement(cc): 499
High Light:

210A Stick Welding Generator

,

5kw Stick Welding Generator

,

210A 5kw Single Phase Generator

RW8500DE Diesel Welding Generators Excitation Electric start

MOQ:12units mixed model





Description



When you need to weld away from any power source – you need an engine driven welder generator.

These amazing machines provide uninterrupted power for themselves with high duty cycles for quality welds.

But running several different processes can carry a serious price tag.

Make sure you get all the welding power you need without paying more than you should.

With a lot of options online, we’ve narrowed them down and listed some of the best engine driven welder generators available.

The RW8500DE Diesel Welding Generators Excitation Electric start is used for power generation and welding. The generator is made of coreless pure copper wire to ensure that the generator will not be burned out due to overheating during operation. It is equipped with ultra-high performance power and low fuel consumption. It adopts a new tip clearance fuel pump and bottom inertial injection technology, which is safer than gasoline. AVR voltage automatic regulation, engine oil automatic protection, muffler, good noise reduction effect. The oil tank of the diesel generator is made of high-temperature materials resistant to oil liquid corrosion, and the box is firm. The oil tank is equipped with a buoy, which can accurately reflect the oil stock in the oil tank. The oil tank also has a liquid level display, which can show where the diesel is located. The RW8500DE Diesel Welding Generators Excitation Electric start alternating current and DC welding. The generating voltage can be selected according to needs. It is widely used and suitable for all kinds of scenes. It has strong applicability to the special environment such as pipeline tunnel construction, field operation and municipal rush repair.



Features:



• One unit, dual function
Welding and power supply at the same time.

• Supper welding
With strong air-cooled 4-stroke diesel engine, provides supper welding current.

• High conversion efficiency
100% copper alternator, class F insulation, high conversion efficiency, smart AVR controller ensures stable voltage and less voltage waveform distortion

• Safe and low fuel consumption
With new tip-clearance fuel pump and bottom inertia injection technology, security is better than that of gasoline.

• Portable design
New design of frame, compact structure, four strong wheels, easy to move.

• Multifunctional control panel

Overload Protection Device.AC generation/DC welding one-key switch.Welding current size can be fine-tuned,Digital controller to display unit frequency voltage/usage



Model RW8500DE
Rated Frequency [Hz] 50 60
Rated Voltage [V] 220,230,240,110/220,115/230,120/240
Auxiliary Output [Kva] AC 5
Welding Voltage Without Load [V] 50~65
Rated Current [A] 210
Work Voltage [V] 25~30
Current Regulation Range[A] 70 ~ 220
Welding Load Continuous Ration 60%
Phase Number Single Phase
Excitation Transistorized Self-excitation , brush
Power Factor Φ 1
Insulation Grade F
Fuel Tank Capacity [L] 12.5
Frame Type 35 * 35mm Squre tube frame 35 * 35mm
Engine Model RD192FE
Starting System Electric starting
Engine Type 1-Cylinder ,4-Stroke, Air-cooled,Veritical
Broke * Stroke [mm] 92* 75
Displacement 0.499
Compression Ratio 19.5:1
Ration Rotation Speed [rpm] 3000 3600
Rated Power 7.6 8.6
Power-take-off Crankshaft
Lube [L] 1.65
Fuel Type 0#(summer), -10#(winter), Diesel oil
Lube SAE10W30 ( above CD grade )
Low Oil Pressure Alarm System With
Overall Diemension [mm]( L*W*H) 750*515*640
Net Weight [Kg] 127



MOQ:12units mixed model



Application



• Construction
• Power Tools
• Drills
• Power Saws
• RVs and Campers
• Recreational Use
• Construction
• Refrigerators, TVs, Appliances
• Power Tools, Drills, Power Saws
• Outdoor and Indoor Lights
