4 - WD - Self Propelled Tiller - Belt Connection 900mm Width 250mm Depth

I'm Online Chat Now

4 - WD - Self Propelled Tiller - Belt Connection 900mm Width 250mm Depth

4 - WD - Self Propelled Tiller - Belt Connection 900mm Width 250mm Depth
4 - WD - Self Propelled Tiller - Belt Connection 900mm Width 250mm Depth
4 - WD - Self Propelled Tiller - Belt Connection 900mm Width 250mm Depth 4 - WD - Self Propelled Tiller - Belt Connection 900mm Width 250mm Depth 4 - WD - Self Propelled Tiller - Belt Connection 900mm Width 250mm Depth 4 - WD - Self Propelled Tiller - Belt Connection 900mm Width 250mm Depth 4 - WD - Self Propelled Tiller - Belt Connection 900mm Width 250mm Depth 4 - WD - Self Propelled Tiller - Belt Connection 900mm Width 250mm Depth

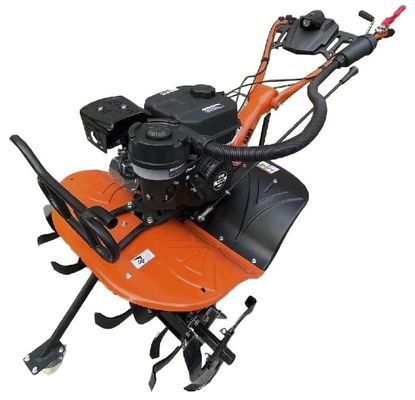

Large Image :  4 - WD - Self Propelled Tiller - Belt Connection 900mm Width 250mm Depth

Product Details:
Place of Origin: CHINA
Brand Name: RAMS
Model Number: 1WGQZ4.0-90
Payment & Shipping Terms:
Minimum Order Quantity: 100 units mixed model
Packaging Details: Carton/Pallet/Wooden case
Delivery Time: 25 work days
Payment Terms: T/T, L/C

4 - WD - Self Propelled Tiller - Belt Connection 900mm Width 250mm Depth

Description
Item: Mini Power Tiller Tiller Type: 4-WD-Belt Connection Tiller
Tilling Width: 900mm Tilling Depth: 150-250mm
Transmission Type: Belt Connection Blades Roller Drive Mode: Chain Rotation
Main Clutch Type: Friction Plate Type Engine Starting Mode: Rocil Start
Transmission Speeds: 2forward Speeds, 0, WALK Rotary Tillage Knife Type: Anti-winding Knife
High Light:

4 - WD - Belt Connection Mini Power Tiller

,

900mm Width Mini Power Tiller

,

Mini Power Tiller 250mm Depth

4-WD-Belt Connection Tiller
MOQ:20units mixed model


FEATURES
4WD Belt Connection Tiller
4-Driven Self propelled tiller can walk itself,no need to push

2 forward speeds, 0 ,WALK
Multiple speeds offer more options for tilling and transportation.

Front Working blades Provides operator protection
Blades in Front side is far more safty for people's feet .

Direct Connect Design Easy access controls
A simple, straightforward design that controls both tine and drive wheel

Easy to climb raised path through fields
Compact overall sizes n light weight makes it easy to climb raised path through fields



SPECIFICATION
NO. Model Name 1WGQZ4.0-90 1WGCZ4.05-90
RAMS NEW ARRIVAL Reference PICS
1 Tiller Type / 4-WD-Self Propelled - Gasoline 4-WD-Self Propelled - Diesel
2 Tilling Width mm 900 900
3 Tilling Depth mm 150-250 150-250
4 Transmission Type / Belt Connection Belt Connection
5 Blades roller drive mode Chain rotation Chain rotation
6 Handle adjust (horizontal direction) (º) 0 0
7 Handle adjust (vertical direction) 90 90
8 Transmission Speeds r/min 2 forward speeds, 0, WALK 2 forward speeds, 0, WALK
9 Tilling speed @max engine speed mm 180 180
10 Main clutch type / friction plate type friction plate type
11 The main clutch is in normal state / Normal open Normal open
12 Engine Model / Gasoline 170F 212cc Diesel 173F 238cc
13 Engine power Kw/HP 4.0 / 7.0 4.05 / 5.5
14 Engine Air filter / Oil Bath Air cleaner Oil Bath Air cleaner
15 Engine speed r/min 3600 3600
16 Engine starting mode / Rocil Start Rocil Start
17 Engine Fuel consumption kg/hm2 ≤35 ≤35
18 Engine Fuel capacity L 6.5 Gasoline 2.5 Diesel
19 Engine Oil capacity L 0.6 (SAE10W30 above CC garde) 1.1 (SAE10W30 above CC garde)
20 Overall dimensions (L×W ×H) mm 1380x975x960 1380x975x960
21 Operation speed m/s 0.19 0.19
22 Operation hour productivity hm2/(h·m) ≥0.04 ≥0.04
23 Rotary tillage knife type / Anti-winding knife Anti-winding knife
24 Matching Standar Tyres   400-8 400-8
25 Matching Standar working wheels   Iron wheels Iron wheels
26 NW/GW weight kgs 86/106 97/117
27 Wooden Case Sizes mm 950*560*820 950*560*820
28 20GP/ 40HQ QTY Units 48/144 48/144



MOQ:20units mixed model



4 - WD - Self Propelled Tiller - Belt Connection 900mm Width 250mm Depth 0


 4 - WD - Self Propelled Tiller - Belt Connection 900mm Width 250mm Depth 1


4 - WD - Self Propelled Tiller - Belt Connection 900mm Width 250mm Depth 2
