Product Details:
|
| Model Number: | RWD160DC | DC Welding Current: | 160A |
|---|---|---|---|
| Auxiliary Output: | DC 1.8kw | DC Welding Voltage: | 22-28 |
| Welding Current Range: | Unadjustable | Duty Cycle At Rated Amps Avalible: | 60% @160A |
| Fuel Tank Capacity: | 3.5L | Fuel Type: | Diesel |
| High Light: | 1.8kw Diesel Welding Generators,178F Diesel Welding Generators,178F Diesel Engine Generators |
||

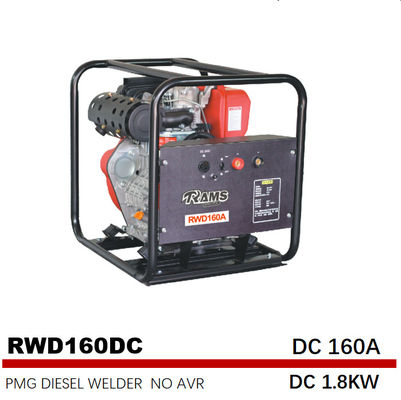

140A Medium Frequency Permanent Magnet Welder Generators
MOQ:24units mixed model
Features:
| Unit Specification | RWD160DC | RWD160DCE |
| DC Welding Current | 160A | 160A |
| DC Welding Voltage | 22-28V | 22-28V |
| Welding Current Range | unadjustable | unadjustable |
| Duty Cycle at rated amps avalible | 60% @160A | 60% @160A |
| Welding Process | SMAW (MMA) | SMAW (MMA) |
| Welding Rod diameter | 2.5-3.2mm | 2.5-3.2mm |
| Fuel Tank Capacity | 3.5L | 3.5L |
| Fuel type | diesel | diesel |
| Generator Specification | ||
| Power rated output (single phrase) | DC 1.6kw | DC 1.6kw |
| Auxiliary Output(Optional) | DC 1.8kw | DC 1.8kw |
| Voltage | 120V/220V/240V | 120V/220V/240V |
| Receptacles | 1ps 16A | 1ps 16A |
| Dimensions&Weights | ||
| ShippingN.W/G.W | 111.33Ibs/50.5kgs | 120.15Ibs/54.5kgs |
| Carton size | 470*520*560mm | 470*520*560mm |
| Q'ty 20"/40"/40"H | 192/400/400 | 192/400/400 |
| Engine Specification | ||
| Engine Model | 178F | 178FE |
| Start Method | Recoil start | Electric start |
| Borex stroke mm | 78*62 | 78*62 |
| Engine type | Diesel Engine,Single Cylinder,4-Stroke,Air-Cooled, Direct Injection | |
| Ignition System | Compression Ignition | |
MOQ:24units mixed model
