Product Details:
|
| Model Number: | RWG120C | DC Welding Current: | 120A |
|---|---|---|---|
| Auxiliary Output: | DC/AC 2-3kw | Duty Cycle At Rated Amps Avalible: | 60% @120A |
| Fuel Tank Capacity: | 3.6L | Engine Model: | 170F |
| Fuel Type: | Gasoline | DC Welding Voltage: | 22-28V |
| High Light: | 3.6L Petrol Welding Generators,120A Petrol Welding Generators,120A Permanent Magnet Generators |
||

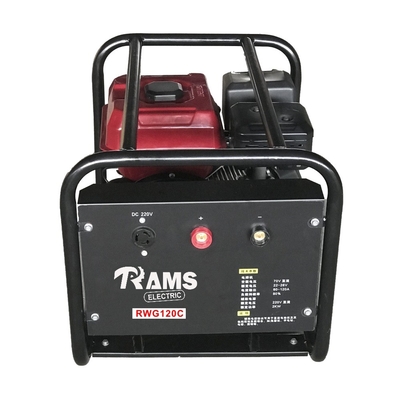

120A Petrol Welding Generators Medium Frequency Permanent Magnet Type C
MOQ:24units mixed model
Description
The 120A Petrol Welding Generators Medium Frequency Permanent Magnet Type C is designed for high power and durability. Ideal for farms, workshops, or any job that requires electrical power and CC (constant current) stick welding. Producing up to 120 Amps of DC output with a 60% duty cycle, it is suitable for welding from 6010 rods up to 6013 rods. Convenient back wheels allow for maneuverability for portable onsite welding and can also be used for emergency back-up power when necessary. Featuring incredible 7HP engine, with 2200 watts of DC output, this welder generator will provide you with the power you need wherever you need it. The 120A RWG-C Portable Petrol Welding Generators Hand Start is an excellent tool for job applications at your workshop, ranch, or farm - and is backed by a 1-year engine warranty.
Features
• Open frame engine fuel tank
| Unit Specification | RWG120C |
| DC Welding Current | 120A |
| DC Welding Voltage | 22-28V |
| Welding Current Range | unadjustable |
| Duty Cycle at rated amps avalible | 60% @120A |
| Welding Process | SMAW (MMA) |
| Welding Rod diameter | 2.5-3.2mm |
| Fuel Tank Capacity | 3.6L |
| Fuel type | gasoline |
| Generator Specification | |
| Axillary Output (Optional) | DC 2kw AC 1.6kw/ 3kw |
| Voltage | 120V/220V/240V |
| Dimensions&Weights | |
| ShippingN.W/G.W | 76.05Ibs/34.5kgs |
| Carton size | 490*420*490mm 19.3*16.5*19.29in |
| Q'ty 20"/40"/40"H | 252/528/660 |
| Engine Specification | |
| Engine Model | 170F |
| Start Method | Electric start |
| Borex stroke mm | 70*58 |
| Engine type | Gasoline Engine, Single Cylinder,4-Stroke,OHV,Air-Cooled |
Contact Person: RamsElectric
