Product Details:
|
Model Number: | ZX7-200 | Output Current Range: | 100-200 A |
---|---|---|---|
Rated Input Power Capaity: | 6.3 KVA | No Load Voltage: | 65 V |
No Load Loss: | 40 W | Rated Output Voltage: | 28 V |
High Light: | MMA Portable Welding Generators,IGBT Portable Welding Generators,MMA Single Phase Generators |

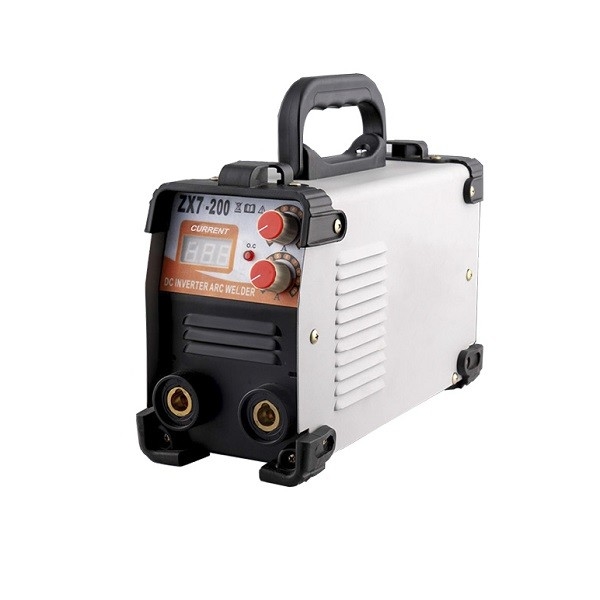

ARC Single Phase Single Tube Portable Welding Generators IGBT MMA Series
MOQ:12units mixed model
Product Overview
Manual arc welding does not need protective gas, but forms a protective layer on the molten pool by melting the coating on the electrode. When the welding is finished, the molten pool gradually cools down, and this protective layer is separated from the solidified welding surface. Another reason for manual welding protection is that we can easily buy electrodes, and can also be broken into small packages to buy, which provides great convenience for the situation of small demand for welding or sporadic operations in the field.
Property Features
• Automatic compensation of voltage fluctuation;
• Strong anti-grid fluctuation, stable welding current;
• With over voltage over current automatic protection function;
• Good thrust compensation;
• Reliable performance, small size, light weight, high efficiency and energy saving;
• Can use a variety of grades of acid, alkaline electrode welding;
• Suitable for low carbon steel, medium carbon steel and alloy steel;
Product Parameters
Parameters | ZX7-200 |
Input supply voltage(V) | 150-260 |
Rated input power capaity(KVA) | 6.3 |
Input voltage frequency(Hz) | 50/60 |
No load voltage(V) | 65 |
Output current range(A) | 10-200 |
Rated output voltage(V) | 28 |
Load duration rate(%) | 60 |
Efficiency(%) | 85 |
COS Power factor COSФ | 0.93 |
Class of insulation | F |
Weight(KG) | 3 |
Outline dimensions(mm) | 300x130x200 |
Shell protection class | IP21 |
Thrust adjusting range(A) | / |
MOQ:12units mixed model
