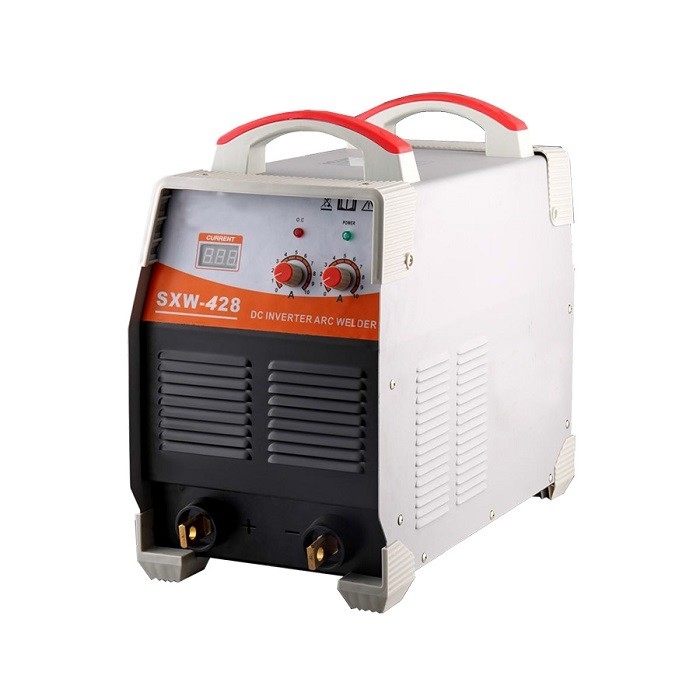

19KVA Three Phase Manual Portable Welding Generators 428 Amp

I'm Online Chat Now

19KVA Three Phase Manual Portable Welding Generators 428 Amp

19KVA Three Phase Manual Portable Welding Generators 428 Amp
19KVA Three Phase Manual Portable Welding Generators 428 Amp

Large Image :  19KVA Three Phase Manual Portable Welding Generators 428 Amp

Product Details:
Place of Origin: CHINA
Brand Name: RAMS
Certification: CE
Model Number: SXW-428
Payment & Shipping Terms:
Minimum Order Quantity: 100 units mixed model
Packaging Details: Carton/Pallet/Wooden case
Delivery Time: 25 work days
Payment Terms: T/T, L/C

19KVA Three Phase Manual Portable Welding Generators 428 Amp

Description
Model Number: SXW-428 Output Current Range: 20-428 A
Rated Input Power Capaity: 19 KVA Rated Output Voltage: 37.12 V
No Load Loss: 60 W Input Supply Voltage: 380 V
High Light:

428 Amp Portable Welding Generators

,

19KVA Portable Welding Generators

,

428 Amp Three Phase Generators

SXW-428 Three Phase Manual Welding Module Series Portable Welding Generators

MOQ:2units mixed model





Product Overview



Do not need to protect gas manual arc welding, but by melting electrode coated in the molten pool form a protective layer, when the welding work ended, molten pool gradually cooling, the protective layer is pulled away from welding clever after curing. Another reason for manual welding protection is that we can easily buy welding rods, and can be broken into small packages to buy, which is not high demand for welding or sporadic operations in the field to provide a great help.



Property Features



• Automatic compensation of voltage fluctuation;

• Strong anti-power grid fluctuation, stable welding current;

• Automatic over-voltage and over-current protection function;

• Good thrust compensation;

• Reliable performance, small size, light weight, efficient energy saving:

• Various grades of acid, alkali star electrode can be used for welding;

• Suitable for low carbon steel, medium carbon steel, alloy steel and other metals.



Product Parameters



Parameters SXW-428
Input supply voltage(V) 380
Rated input power capaity(KVA) 19
Input voltage frequency(Hz) 50/60
No load voltage(V) 65
Output current range(A) 20-428
Rated output voltage(V) 37.12
Load duration rate(%) 60
No load loss(W) 60
Efficiency(%) 85
COS Power factor COSФ 0.93
Class of insulation F
Weight(KG) 15
Outline dimensions(mm) 575x290x430
Shell protection class IP21
Thrust adjusting range(A) /

MOQ:2units mixed model

Package Includes

• SXW-428 Generator
• Connection pieces
The toolkit
