Product Details:
|
Model Number: | LGK70 | Output Current Range: | 15-70 A |
---|---|---|---|
Rated Input Power Capaity: | 7.0 KVA | Rated Output Voltage: | 72.8 V |
No Load Loss: | 50 W | No Load Voltage: | 340 V |
High Light: | 7.0 KVA Plasma Arc Cutting Machine,100 KHZ Plasma Arc Cutting Machine,100 KHZ Arc Cutting Machine |

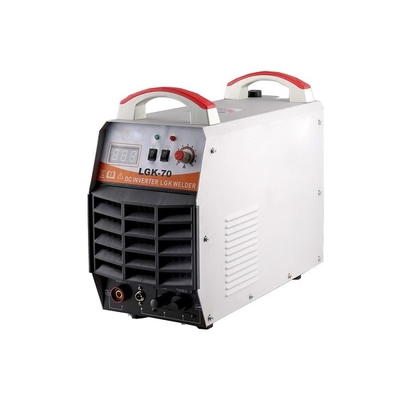

LGK70 Air Plasma Arc Cutting Machines Portable Welding Generators
MOQ:24units mixed model
Product Overview
LGK70 Air Plasma Arc Cutting Machines Portable Welding Generator industrial-grade simple operation panel design, include current display table, current adjusting knob, gas inspection/cutting switch, current adjusting knob, gas delay time knob, cellular heat-sink window, plastic handle, the cutting torch interface strength, the line of control interface, d arc interfaces, grounding clip, with 2 t / 4 t switch, flow indicator. LGK70 line is industrial standard line, neat rules; IGBT power tube, the use of this crystal design can improve the efficiency of the product, so that the power quality is good, high efficiency, less heat loss, low noise, small size and product life long and other advantages; Microcomputer industry circuit board makes cutting control more precise; Industrial large aluminum heat pipe can be cut for a long time without burning machine.
Property Features
• IGBT power module switching element, working frequency up to 100 KHZ;
• Advanced design, high inverter frequency, duty cycle, high energy saving energy saving, small volume,
• Light weight, easy to carry, especially suitable for outdoor mobile operation, using cheap compressed air as cutting air source, more economical and efficient than flame cutting
• A high success rate, compared with the traditional cutting machine, arc, arc pressure is high, the energy concentration, strong cutting ability,
• Fast cutting speed, narrow cutting slot, smooth incision, small deformation and other advantages.
• Arbitrary curve cutting of metal sheet of different thickness, continuous adjustable cutting current, accurate and intuitive;
• Built-in overheated, over-current, over-voltage, under-voltage protection circuit, safe in operation.
Product Parameters
Parameters | LGK-70 |
Input supply voltage(V) | 220 |
Rated input power capaity(KVA) | 7 |
Input voltage frequency(Hz) | 50/60 |
No load voltage(V) | 340 |
Output current range(A) | 15-70 |
Rated output voltage(V) | 72.8 |
Load duration rate(%) | 60 |
No load loss(W) | 50 |
Efficiency(%) | 85 |
COS Power factor COSФ | 0.93 |
Class of insulation | F |
Weight(KG) | 14 |
Outline dimensions(mm) | 400x153x290 |
Shell protection class | IP21 |
Thrust adjusting range(A) | / |
