Product Details:
|
Model Number: | RNG230DE | DC Welding Current: | 230A |
---|---|---|---|
Auxiliary Output: | AC 3kw | DC Welding Voltage: | 40-220 |
Fuel Tank Capacity: | 5.5L | Fuel Type: | Diesel |
Engine Model: | 192F | Start Method: | Electric Start |
High Light: | 1.6kw Diesel Welding Generators,195F Diesel Welding Generators,1.6kw Diesel Power Generators |

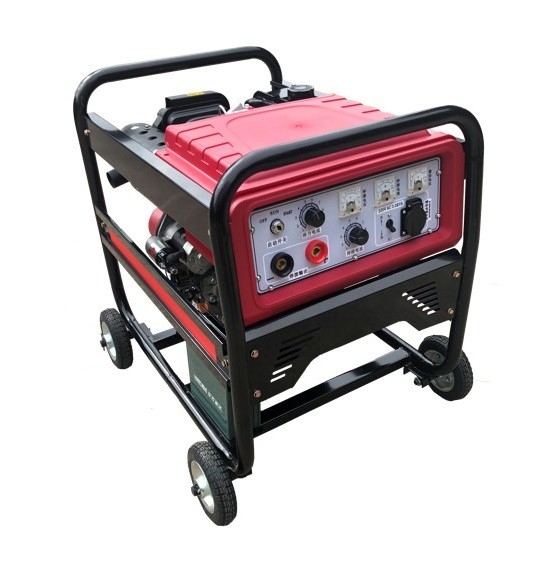

RNG230DE Diesel Welding Generators Excitation Electric start
MOQ:12units mixed model
• The appearance is simple and clean, easy to operate, the open shelf can see the quality details clearly, the panel is simple, and all functions are clear at a glance;
• High quality engine, single cylinder, air-cooled, four stroke, vertical, direct injection;
• Small size, low fuel consumption and long working time;
• Industrial welding configuration, heightening welding machine configuration, medium and high frequency welding, both process and material selection are carefully made;
• Applicable scenarios, oil fields, emergency repair, welding, engineering construction, power emergency, lighting, etc.
Performance Data | WELDER GENERATOR |
Unit Specification | |
DC Welding Current | 230A |
Non-loading Voltage(V) | 60-70 |
Welding Current Range | 40-220 |
Duty Cycle at rated amps avalible | 60% @230A |
Welding Rod diameter | 2.0-6.0mm |
Fuel Tank Capacity | 5.5L |
Fuel type | diesel |
Generator Specification | |
Power rated output (single phrase) | AC 3kw |
Voltage | 120V/220V/240V |
Receptacles | 1ps 16A |
Dimensions&Weights | |
Carton size(mm) | 730*550*640mm |
Net/Gross Weight(kg) | 90/94kgs |
Engine Specification | |
Engine Model | 192FE |
Start Method | Electric start |
Borex stroke mm | 92*75 |
Horsepower/displacement | 499cc |
Ignition System | Compression Ignition |
MOQ:12units mixed model
