Product Details:
|
Model Number: | RWG210S | DC Welding Current: | 210A |
---|---|---|---|
Auxiliary Output: | AC 3kw | Duty Cycle At Rated Amps Avalible: | 60% @210A |
Fuel Tank Capacity: | 12.5L | Engine Model: | 190F |
Fuel Type: | Gasoline | DC Welding Voltage: | 70-75V |
High Light: | 210A Manual Welding Machine,3kw Manual Welding Machine,210A 3kw welding machine |

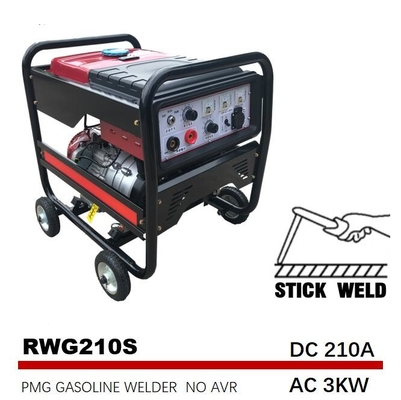

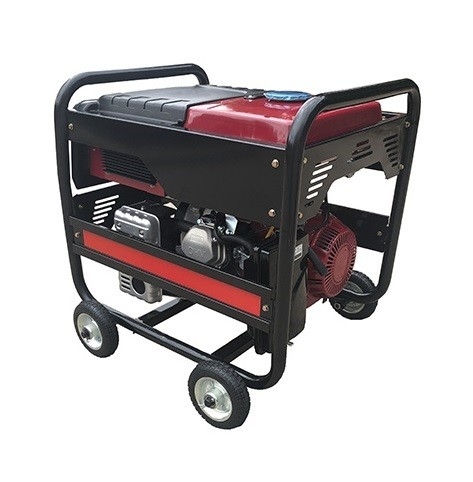

RWG210S Petrol Welding Generators Medium Frequency Permanent Magnet
MOQ:12units mixed model
Description
• Wide range of application, can be used as a professional oil and gas pipeline construction units, railways, municipal pipe network, chemical plants, power plants, steel plant construction and emergency maintenance.
• Medium frequency three-phase rectifier, smooth current, good dynamic characteristics, fast response (1-3ms). Can meet different welding requirements, and is suitable for all kinds of acid, alkaline electrode and argon arc welding operations.
• Permanent magnet technology, with small size, light weight, small iron loss, high efficiency, efficiency up to 90%.
• Abandon the IGBT(insulated gate bipolar transistor) with high failure rate and adopt the built-in control mode, which greatly improves the reliability of the control system.
• Dual output, can meet the requirements of welding and using small power tools.
• Removable wheel set, easy to move.
• The project has been supported by the Innovation Fund of the Ministry of Science and Technology.
Unit Specification | |
DC Welding Current | 210A |
Non-loading Voltage(V) | 70-75 |
Welding Current Range | 60-210 |
Duty Cycle at rated amps avalible | 60% @210A |
Welding Process | MMA /TIG |
Welding Rod diameter | 1.5-4.0mm |
Fuel Tank Capacity | 12.5L |
Fuel type | gasoline |
Generator Specification | |
Power rated output (single phrase) | DC 1.6kw |
Power Max output (single phrase) | AC 3kw |
Voltage | 120V/220V/240V |
Receptacles | 1ps 16A |
Dimensions&Weights | |
Carton size(mm) | 720*540*570mm |
Net/Gross Weight(kg) | 83/85.5kgs |
Q'ty 20"/40"/40"H | 128/256/256 |
Engine Specification | |
Engine Model | 190FE Gasoline engine |
Start Method | Electric start |
Borex stroke mm | 90*66 |
Horsepower/displacement | 420cc |
Ignition System | CDI |
