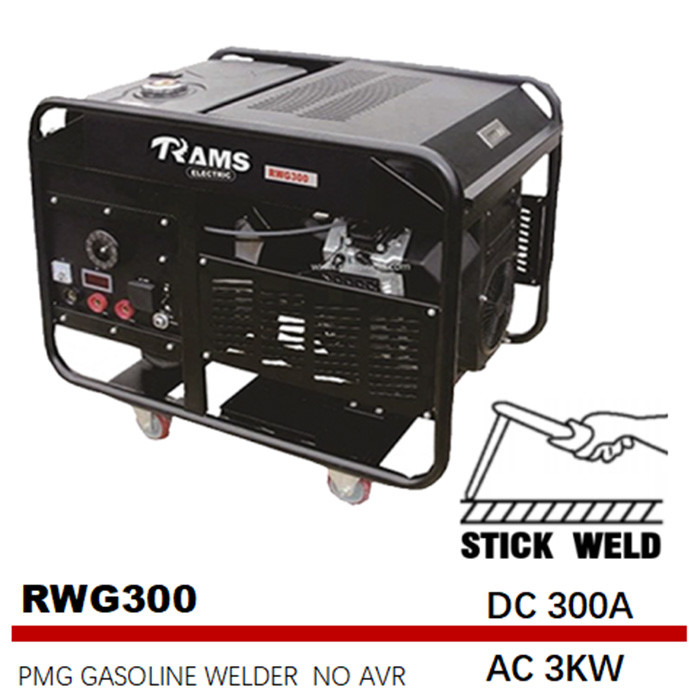

300A Petrol Stick Welding Generator 30L Tank AC 3kw Stick Welding Machine

I'm Online Chat Now

300A Petrol Stick Welding Generator 30L Tank AC 3kw Stick Welding Machine

300A Petrol Stick Welding Generator 30L Tank AC 3kw Stick Welding Machine
300A Petrol Stick Welding Generator 30L Tank AC 3kw Stick Welding Machine

Large Image :  300A Petrol Stick Welding Generator 30L Tank AC 3kw Stick Welding Machine

Product Details:
Place of Origin: CHINA
Brand Name: RAMS
Certification: CE
Model Number: RWG300
Payment & Shipping Terms:
Minimum Order Quantity: 100 units mixed model
Packaging Details: Carton/Pallet/Wooden case
Delivery Time: 25 work days
Payment Terms: T/T, L/C

300A Petrol Stick Welding Generator 30L Tank AC 3kw Stick Welding Machine

Description
Model Number: RWG300 DC Welding Current: 300A
Auxiliary Output: AC 3kw Non-loading Voltage(V): 70-75
Welding Current Range: 100-300 Duty Cycle At Rated Amps Avalible: 60% @300A
Fuel Tank Capacity: 30L Engine Model: 2V78E Gasoline Engine
Start Method: Electric Start Electric Start: 678cc
High Light:

300A Stick Welding Generator

,

30L Stick Welding Generator

,

3kw stick welding machine

300A Petrol Welding Generators Medium Frequency Permanent Magnet

MOQ:2units mixed model



• New design of maintenance-free permanent magnet generator, high conversion efficiency

• Intelligent program to control welding current, welding external characteristics, welding dynamic characteristics,

• Continuous adjustable welding current, thick and thin plate can be welded

• Large mailbox for long continuous working hours

• Double cylinder power, provide sufficient power support

• Suitable for a wide variety of practical welding applications


Performance Data WELDER GENERATOR
Unit Specification
DC Welding Current 300A
Non-loading Voltage(V) 70-75
Welding Current Range 100-300
Duty Cycle at rated amps avalible 60% @300A
Welding Process
Welding Rod diameter 2.5-8.0mm
T.H.D <3%
Fuel Tank Capacity 30L
Fuel type gasoline
Generator Specification
Axillary Output(Optional) AC 3kw
Voltage 120V/220V/240V
Receptacles 1ps 16A
Dimensions&Weights
Carton size(mm) 960*600*770mm
Net/Gross Weight(kg) 150/155kgs
Q'ty 20"/40"/40"H 42/86/129
Engine Specification
Engine Model 2V78E Gasoline engine
Start Method Electric start
Borex stroke mm 78*71
Horsepower/displacement 678cc
Ignition System CDI



MOQ:2units mixed model
