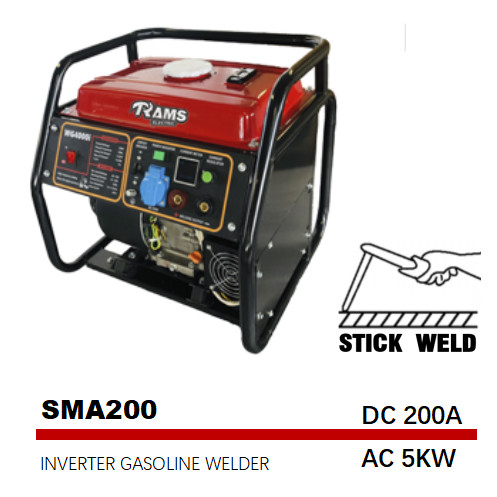

200A Portable Petrol Stick Welding Generator Hand Start 15L Fuel Tank

I'm Online Chat Now

200A Portable Petrol Stick Welding Generator Hand Start 15L Fuel Tank

200A Portable Petrol Stick Welding Generator Hand Start 15L Fuel Tank
200A Portable Petrol Stick Welding Generator Hand Start 15L Fuel Tank

Large Image :  200A Portable Petrol Stick Welding Generator Hand Start 15L Fuel Tank

Product Details:
Place of Origin: CHINA
Brand Name: RAMS
Certification: CE
Model Number: SMA200
Payment & Shipping Terms:
Minimum Order Quantity: 100 units mixed model
Packaging Details: Carton/Pallet/Wooden case
Delivery Time: 25 work days
Payment Terms: T/T, L/C

200A Portable Petrol Stick Welding Generator Hand Start 15L Fuel Tank

Description
Model Number: SMA200 DC Welding Current: 200A
DC Welding Voltage: 22-28V Welding Current Range: 60-180A
Fuel Tank Capacity: 15L Fuel Type& Consumption At Rated Load: 420g/kw.h
Engine Model: 190F Engine Power: 9.5kw
High Light:

200A Stick Welding Generator

,

15L Stick Welding Generator

,

200A Hand Start Generator

200A Portable Petrol Welding Generators Hand Start

MOQ:12units mixed model





200 amps DC ; 230V AC ,420cc

Coming in at  80kgs , RAMS's 200-amp welder
is the number one choice for those hard to reach areas with
maintainance free permanent magnet generator NEW design.
This unit manitains the quality output contractors demand
and have to come to expect.
• 200 apms of DC welding power
• High- frequency continuous weld 4.0mm Rod
• Noise less than 75db(7m)
• Ideal for a wide variety of utility welding application
• Welding gun,cable,gloves and clamps etc are optional



  WELDER GENERATOR
Performance Data
Unit Specification SMA200A
DC Welding Current 200A
DC Welding Voltage 22-28V
Welding Current Range 60-180A
Duty Cycle at rated amps avalible 60% @180A
Welding Process SMAW (MMA)
Welding Rod diameter 1.6-4.0mm
T.H.D <3%
Fuel Tank Capacity 15L
Start 2.2Kw air compressor Can
Fuel type& Consumption at rated load 420g/kw.h
Generator Specification
Power rated output (single phrase) AC 4.6kw
Power Max output (single phrase) AC 5.0kw
Frequency 50HZ
Voltage 230V
Receptacles 1ps 16A
Dimensions&Weights
Overall Length 565mm
Overall Width 525mm
Overall Height 525mm
ShippingN.W/G.W 80/82kgs
Shipping Dimensions 575*535*535mm
Engine Specification
Engine Model 190F
Start Method Recoil start
Engine Power 9.5kw
Engine RPM 3600
Engine Oil Capacity 1.1L



MOQ:12units mixed model
