AC 4kw Stick Welding Generator Excitation 180A Electric Start Diesel Stick Welder

I'm Online Chat Now

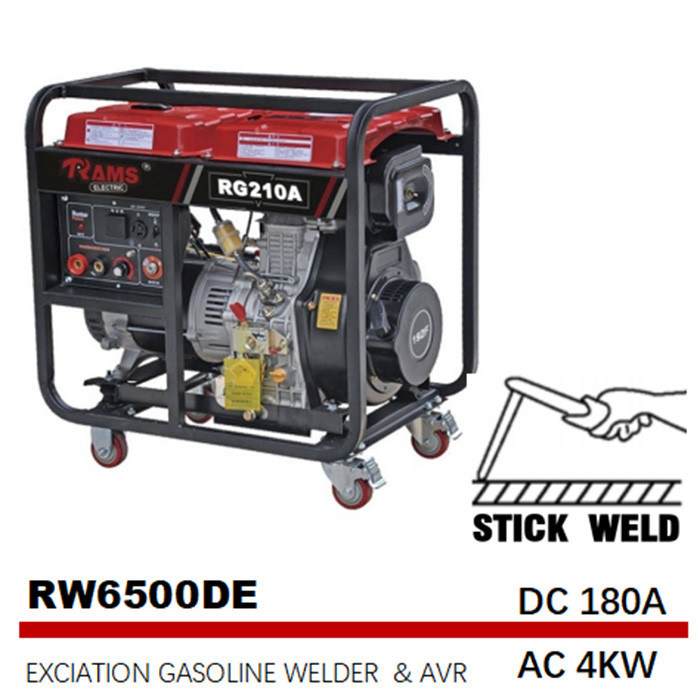

AC 4kw Stick Welding Generator Excitation 180A Electric Start Diesel Stick Welder

AC 4kw Stick Welding Generator Excitation 180A Electric Start Diesel Stick Welder
AC 4kw Stick Welding Generator Excitation 180A Electric Start Diesel Stick Welder

Large Image :  AC 4kw Stick Welding Generator Excitation 180A Electric Start Diesel Stick Welder

Product Details:
Place of Origin: CHINA
Brand Name: RAMS
Certification: CE
Model Number: RW6500DE
Payment & Shipping Terms:
Minimum Order Quantity: 100 units mixed model
Packaging Details: Carton/Pallet/Wooden case
Delivery Time: 25 work days
Payment Terms: T/T, L/C

AC 4kw Stick Welding Generator Excitation 180A Electric Start Diesel Stick Welder

Description
Model Number: RW6500DE DC Welding Current: 180A
Auxiliary Output: AC 4kw DC Welding Voltage: 50-180
Fuel Tank Capacity: 12.5L Fuel Type: Diesel
Engine Model: 186F Start Method: Electric Start
High Light:

180A Stick Welding Generator

,

4kw Stick Welding Generator

,

4kw diesel stick welder

RW6500DE Diesel Welding Generators Excitation Electric start

MOQ:24units mixed model





RW6500DE Diesel Welding Generators Excitation Electric start​ can be used for diesel welding and power generation, which can easily solve the problem of no power supply in field construction. We independently develop and manufacture AC power generation and DC welding motor, which adopts full copper wire winding, with sufficient power and long service life. RW6500DE Diesel Welding Generators Excitation Electric startadopts six half wave rectification technology, welding is stable, less spatter, smooth welding joint, meet the general engineering welding requirements. Ac power generation is very use all kinds of power tools on the construction site power supply, one machine dual-use cost-effective.  Ac power generation DC welding, power generation voltage can be selected according to demand, widely used, suitable for a variety of scenarios, pipeline tunnel construction, field work, municipal emergency repair and other special environment has strong applicability.



Features:



One unit, dual function
Welding and power supply at the same time.

Supper welding
With  strong air-cooled 4-stroke diesel engine, provides supper welding current.

High conversion efficiency
100% copper alternator, class F insulation, high conversion efficiency, smart AVR controller ensures stable voltage and less voltage waveform distortion

Safe and low fuel consumption
With new tip-clearance fuel pump and bottom inertia injection technology, security is better than that of gasoline.

Portable design
New design of frame, compact structure, four strong wheels, easy to move.

Multifunctional control panel

Overload Protection Device.AC generation/DC welding one-key switch.Welding current size can be fine-tuned,Digital controller to display unit frequency voltage/usage



Model RW6500DE
Rated Frequency [Hz] 50 60
Rated Voltage [V] 220,230,240,110/220,115/230,120/240
Auxiliary Output[KW] AC 4
Welding Voltage Without Load [V] 50~65
Rated Current [A] 180
Work Voltage [V] 25~30
Current Regulation Range[A] 50 ~ 180
Welding Load Continuous Ration 60%
Phase Number Single Phase
Excitation Transistorized Self-excitation , brush
Power Factor Φ 1
Insulation Grade F
Fuel Tank Capacity [L] 12.5
Frame Type 35 * 35mm Squre tube frame 35 * 35mm
Engine Model RD186FAE
Starting System Electric starting
Engine Type 1-Cylinder ,4-Stroke, Air-cooled,Veritical
Broke * Stroke [mm] 86* 72
Displacement 0.418
Compression Ratio 19.5:1
Ration Rotation Speed [rpm] 3000 3600
Rated Power 5.8 6.6
Power-take-off Crankshaft
Lube [L] 1.65
Fuel Type 0#(summer), -10#(winter), Diesel oil
Lube SAE10W30 ( above CD grade )
Low Oil Pressure Alarm System With
Overall Diemension [mm]( L*W*H) 750*515*640
Net Weight [Kg] 116



MOQ:24units mixed model
