Product Details:
|
| Item: | Gasoline Welding Generators | DC Welding Current: | 300A |
|---|---|---|---|
| Auxiliary Output: | AC 3kw | Non-loading Voltage(V): | 70-75 |
| Welding Current Range: | 100-300 | Duty Cycle At Rated Amps Avalible: | 60% @300A |
| Fuel Tank Capacity: | 30L | Engine Model: | 2V78E Gasoline Engine |
| Start Method: | Electric Start | Electric Start: | 678cc |
| Highlight: | 30L Genset 300 Amp Welder,3kw Genset 300 Amp Welder,3kw 300 Amp Generator |
||

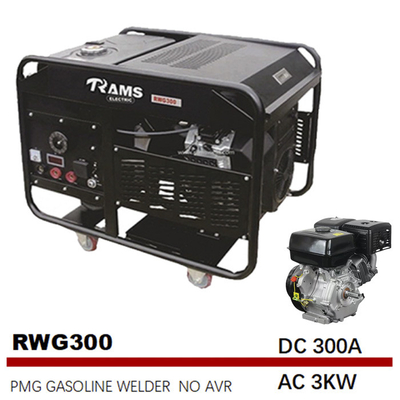

300A Petrol Welding Generators Medium Frequency Permanent Magnet
MOQ:2units mixed model
• New design of maintenance-free permanent magnet generator, high conversion efficiency
• Intelligent program to control welding current, welding external characteristics, welding dynamic characteristics,
• Continuous adjustable welding current, thick and thin plate can be welded
• Large mailbox for long continuous working hours
• Double cylinder power, provide sufficient power support
• Suitable for a wide variety of practical welding applications
| Performance Data | WELDER GENERATOR |
| Unit Specification | |
| DC Welding Current | 300A |
| Non-loading Voltage(V) | 70-75 |
| Welding Current Range | 100-300 |
| Duty Cycle at rated amps avalible | 60% @300A |
| Welding Process | |
| Welding Rod diameter | 2.5-8.0mm |
| T.H.D | ＜3% |
| Fuel Tank Capacity | 30L |
| Fuel type | gasoline |
| Generator Specification | |
| Axillary Output(Optional) | AC 3kw |
| Voltage | 120V/220V/240V |
| Receptacles | 1ps 16A |
| Dimensions&Weights | |
| Carton size(mm) | 960*600*770mm |
| Net/Gross Weight(kg) | 150/155kgs |
| Q'ty 20"/40"/40"H | 42/86/129 |
| Engine Specification | |
| Engine Model | 2V78E Gasoline engine |
| Start Method | Electric start |
| Borex stroke mm | 78*71 |
| Horsepower/displacement | 678cc |
| Ignition System | CDI |
MOQ:2units mixed model
