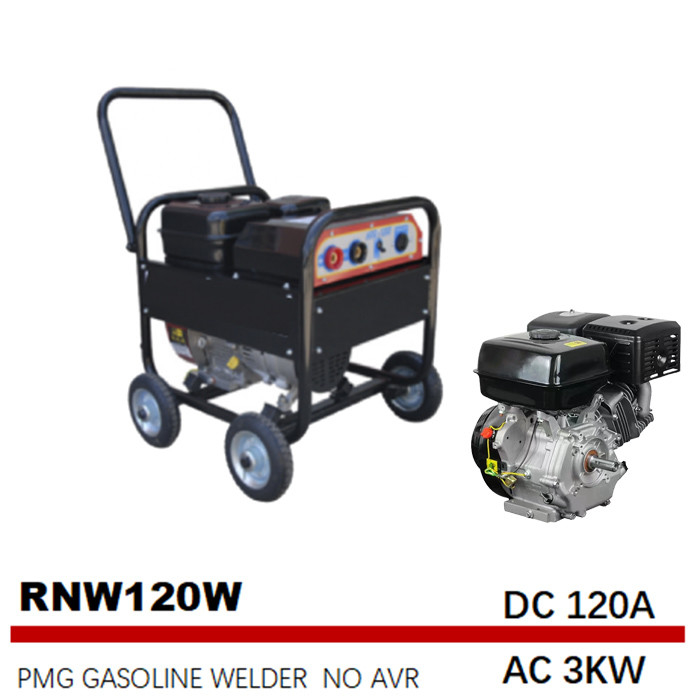

RNW120W Petrol 120 Amp Welder Generator AC 3kw Permanent Magnet

I'm Online Chat Now

RNW120W Petrol 120 Amp Welder Generator AC 3kw Permanent Magnet

RNW120W Petrol 120 Amp Welder Generator AC 3kw Permanent Magnet
RNW120W Petrol 120 Amp Welder Generator AC 3kw Permanent Magnet

Large Image :  RNW120W Petrol 120 Amp Welder Generator AC 3kw Permanent Magnet

Product Details:
Place of Origin: CHINA
Brand Name: RAMS
Certification: CE
Model Number: RNW120W
Payment & Shipping Terms:
Minimum Order Quantity: 100 units mixed model
Packaging Details: Carton/Pallet/Wooden case
Delivery Time: 25 work days
Payment Terms: T/T, L/C

RNW120W Petrol 120 Amp Welder Generator AC 3kw Permanent Magnet

Description
Item: Gasoline Welding Generators DC Welding Current: 120A
Auxiliary Output: AC 3kw Duty Cycle At Rated Amps Avalible: 60% @120A
Fuel Tank Capacity: 3.6L Engine Model: 170F
Fuel Type: Gasoline DC Welding Voltage: 22-28V
High Light:

Petrol 120 Amp Welder

,

Permanent Magnet 120 Amp Welder

,

Petrol 120 Amp Generator

120A Petrol Welding Generators Medium Frequency Permanent Magnet Type L

MOQ:24units mixed model



Description



• Electric welding, ac power 3 KW and 3.2 mm electrode used at the same time, the circuit realization of 1 mm to prevent welding wear plate;

• 120 A current control, light weight, transportation is convenient, economical and practical, low maintenance cost, suitable for mass consumption;

• Wheels, form a complete set, convenient transportation;

• Application fields, construction, installation, civil, decoration, plant maintenance, supporting, coarser light steel structure, power station auxiliary installation, roads, Bridges, etc. Steel welding, installation of outdoor building site.


Specifications

Brand: RAMS
Manufacturers Part Number:
RNW120W

Unit Specification RNW120W
DC Welding Current 120A
DC Welding Voltage 22-28V
Duty Cycle at rated amps avalible 60% @120A
Welding Rod diameter 2.5-3.2mm
Fuel Tank Capacity 3.6L
Fuel type gasoline
Generator Specification
Axillary Output (Optional)  AC 3kw
Voltage 120V/220V/240V
Dimensions&Weights
ShippingN.W/G.W 73.85Ibs/33.5kgs
Carton size 570*450*480mm
22.4*17.72*18.9in
Q'ty 20"/40"/40"H 200/412/515
Engine Specification
Engine Model 170F
Start Method Recoil start
Borex stroke mm 70*58
Engine type Gasoline Engine, Single Cylinder,4-Stroke,OHV,Air-Cooled

MOQ:24units mixed model

Package Includes

RNW120W Welder
• 8" Wheel Kit
