Product Details:
|
| Item: | Gasoline Welding Generators | DC Welding Current: | 120A |
|---|---|---|---|
| Auxiliary Output: | DC 2kw | DC Welding Voltage: | 22-28 |
| Welding Current Range: | Unadjustable | Duty Cycle At Rated Amps Avalible: | 60% @120A |
| Welding Rod Diameter: | 2.5-3.2mm | Fuel Tank Capacity: | 3.6L |
| Engine Model: | 170F | Start Method: | Recoil Start |
| High Light: | MMA Engine Driven Welders,3.6 L Engine Driven Welders,120A Petrol Powered Welders |
||

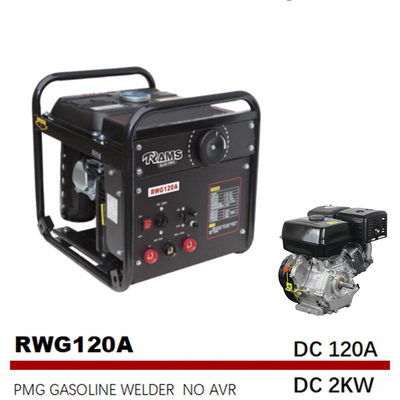

120A Petrol Welding Generators Medium Frequency Permanent Magnet Type A
MOQ:24units mixed model
Description
The WG120A Welder Generators is designed for high power and durability. Ideal for farms, workshops, or any job that requires electrical power and CC (constant current) stick welding. Producing up to 120 Amps of DC output with a 60% duty cycle, it is suitable for welding from 6010 rods up to 6013 rods. Convenient back wheels allow for maneuverability for portable onsite welding and can also be used for emergency back-up power when necessary. Featuring incredible 7HP engine, with 2200 watts of DC output, this welder generator will provide you with the power you need wherever you need it. The WG120A is an excellent tool for job applications at your workshop, ranch, or farm - and is backed by a 1-year engine warranty.
Features
• Generator set small tank
| Unit Specification | RWG120A |
| DC Welding Current | 120A |
| DC Welding Voltage | 22-28V |
| Welding Current Range | unadjustable |
| Duty Cycle at rated amps avalible | 60% @120A |
| Welding Process | SMAW (MMA) |
| Welding Rod diameter | 2.5-3.2mm |
| Fuel Tank Capacity | 3.6L |
| Fuel type | gasoline |
| Generator Specification | |
| Axillary Output (Optional) | DC 2kw |
| Voltage | 120V/220V/240V |
| Dimensions&Weights | |
| ShippingN.W/G.W | 73.85Ibs/33.5kgs |
| Carton size | 570*450*480mm |
| 22.4*17.72*18.9in | |
| Q'ty 20"/40"/40"H | 200/412/515 |
| Engine Specification | |
| Engine Model | 170F |
| Start Method | Recoil start |
| Borex stroke mm | 70*58 |
| Engine type | Gasoline Engine, Single Cylinder,4-Stroke,OHV,Air-Cooled |
