3 Phase 400A Silent Diesel Welding Generator LCD Control Panel DC12V Electric Start

I'm Online Chat Now

3 Phase 400A Silent Diesel Welding Generator LCD Control Panel DC12V Electric Start

3 Phase 400A Silent Diesel Welding Generator LCD Control Panel  DC12V Electric Start
3 Phase 400A Silent Diesel Welding Generator LCD Control Panel  DC12V Electric Start 3 Phase 400A Silent Diesel Welding Generator LCD Control Panel  DC12V Electric Start 3 Phase 400A Silent Diesel Welding Generator LCD Control Panel  DC12V Electric Start

Large Image :  3 Phase 400A Silent Diesel Welding Generator LCD Control Panel DC12V Electric Start

Product Details:
Place of Origin: CHINA
Brand Name: RAMS
Certification: CE
Model Number: AXC1-400A
Payment & Shipping Terms:
Minimum Order Quantity: 100 units mixed model
Packaging Details: Carton/Pallet/Wooden case
Delivery Time: 25 work days
Payment Terms: T/T, L/C

3 Phase 400A Silent Diesel Welding Generator LCD Control Panel DC12V Electric Start

Description
Model Number: AXC1-400A Startup Mode: DC12V Electric Start
Type: Inline ,direct Injection Intake Mode: Turbocharged
Fuel Capacity: 80 L The Prime Power: 20 KW
Phase& Connection: 3 Phase 4 Wire Excitation: AVR
High Light:

400A Silent Diesel Welding Generator

,

3 phase Diesel Welding Generator

,

Electric motor Diesel Welding Generator

400A Silent Diesel Welding Generator LCD control panel DC12V electric start

MOQ:2units mixed model





• LCD control, easy monitor,easy operation.
• Cold rolled sheet matched with wave sound absorbed cotton, sound effect good and durable
• Matched with over ampere protection , Overload protection
• single welding interface, output ampere is 400A
• Welding ampere is set in advance, low spill, no bubble, no adhesive, suitable for acid,alkalescency, stainless steel electrode . unique no adhesive function, push force, adjustable arc welding ,no bubble,no adhesive, welding shape beautiful.
• fibrin electrode (optional)
• Trailer (optional)



• Factory direct sales, the lowest price.


Model No. AXC1-400A
engine Model No. WP2.3D25E200
RPM 1500r/min
displacement(L) 2.3
start DC12V electric motor
type Inline , direct injection
Intake Natural intake
stroke 4
Cylinder 4
bore/stroke 89/92mm
Fuel consumption ≤200g/KW.h
generator Phase 3
The prime power 20KW
RPM 1500r/min
frequency 50HZ
voltage 400V
Power factor 0.8(Lag of power factor)
phase & connection 3 phase 4 wire
Insulation class H
Welder input ampere (A) 26A
Input power(KVA) 17
Welding ampere (A) 400
Welding voltage(V) 36
load continue rate welding A 400A/60%
310A/100%
No load voltage (V) 73
Welding ampere range(A) 20-400
efficiency ≥85%
Power factor (COSφ) >0.95
Insulation class F
Protection grade IP21S
Genset Fuel tank 80L
Size 1800*900*1300mm
weight 650kg



MOQ:2units mixed model

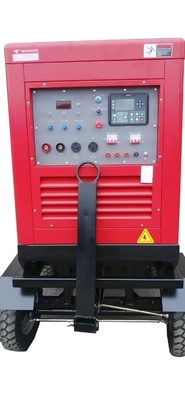

3 Phase 400A Silent Diesel Welding Generator LCD Control Panel  DC12V Electric Start 0

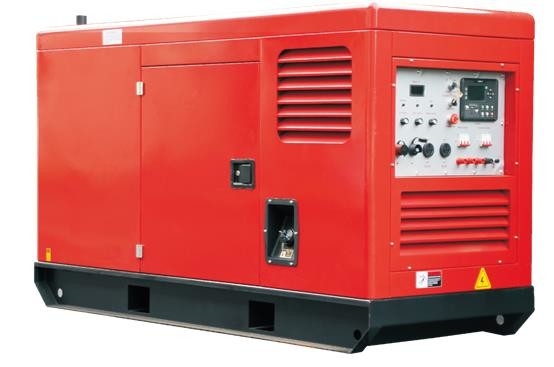

3 Phase 400A Silent Diesel Welding Generator LCD Control Panel  DC12V Electric Start 1

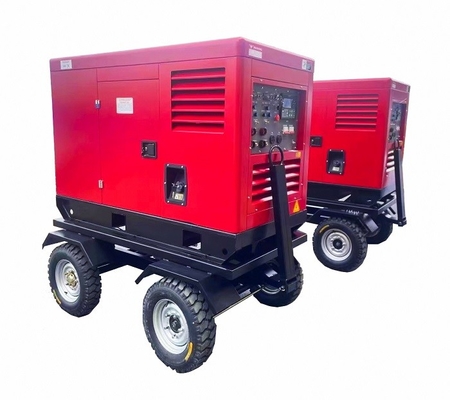

3 Phase 400A Silent Diesel Welding Generator LCD Control Panel  DC12V Electric Start 2
