Product Details:
|
| Model Number: | AXC1-500A | Startup Mode: | DC12V Electric Start |
|---|---|---|---|
| Type: | Inline ,direct Injection,water Cooled | Governing Control: | Electron Governor |
| The Prime Power: | 26KW | RPM: | 1500r/min |
| No Load Voltage (V): | 75V | Welding Ampere Range（A）: | 20-500A |
| High Light: | 500A Diesel Welding Machine,Diesel Welding Generator Arc Machine,26 KW Diesel Welding Generator Machine |
||

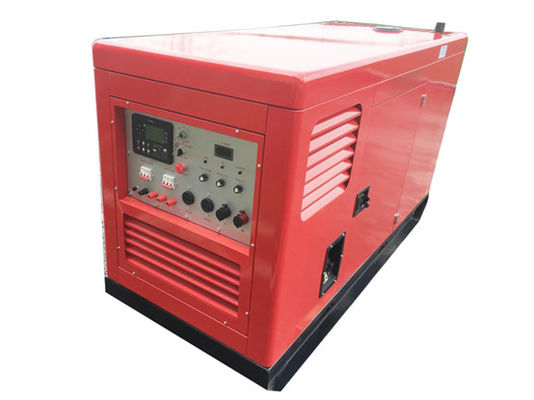

500A Diesel Welding Machine Generator Arc welding Brushless Self Excitation
MOQ:2units mixed model
• LCD control, omnidirectional monitoring and protection, easy to operate
• Anti-corrosion and sunscreen cold rolled steel box with wave sound-absorbing cotton,
sound insulation effect is good and durable
• Equipped with current overcurrent protection, overload short circuit protection unit
• Arc welding machine, connecting wire can be extended to 30m, with 3M 500 torch
• Output current 500A, welding thickness 0.8-15mm
• Strong welding effect, no fear of thick plate and other factors, so that instant arc, no bubbles,
no stick welding forming beautiful
| Model No. | AXC1-500A | |
| engine | Model No. | WP2.3D30E200 |
| RPM | 1500r/min | |
| displacement(L) | 2.3 | |
| start | DC12V electric motor | |
| type | Inline , direct injection | |
| Intake | Natural intake | |
| stroke | 4 | |
| Cylinder | 4 | |
| bore/stroke | 98/110mm | |
| Fuel consumption | ≤200g/KW.h | |
| generator | Phase | 3phase |
| The prime power | 26KW | |
| RPM | 1500r/min | |
| frequency | 50HZ | |
| voltage | 400V | |
| Power factor | 0.8(Lag of power factor) | |
| phase & connection | 3 phase 4 wire | |
| Insulation class | H | |
| Welder | input ampere (A) | 36A |
| Input power(KVA) | 24 | |
| Welding ampere (A) | 500 | |
| Welding voltage(V) | 40 | |
| load continue rate welding A | 500A/60% | |
| 400A/100% | ||
| No load voltage (V) | 75 | |
| Welding ampere range(A) | 20-500 | |
| efficiency | ≥85% | |
| Power factor (COSφ) | ＞0.95 | |
| Insulation class | F | |
| Protection grade | IP21S | |
| Genset | Fuel tank | 80L |
| Size | 1800*900*1300mm | |
| weight | 700kg | |
MOQ:2units mixed model
