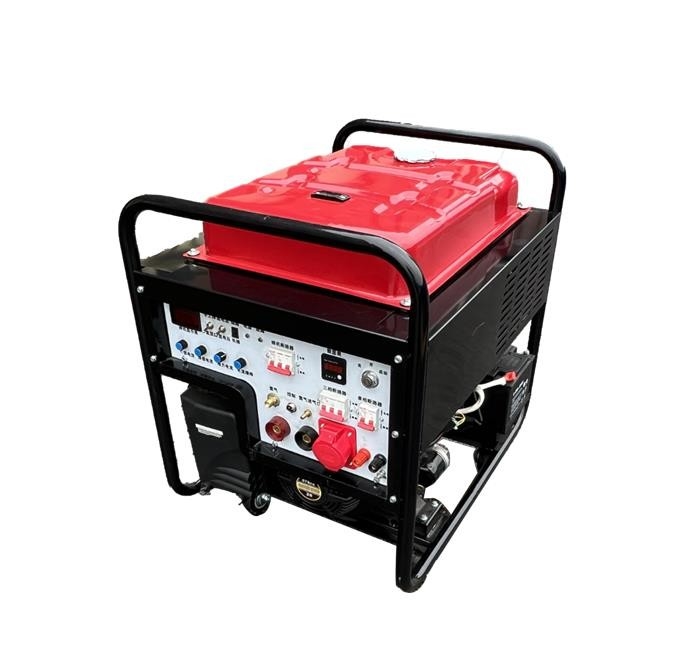

5KW 300A Gasoline Welding Generator Intermediate Frequency

Large Image : 5KW 300A Gasoline Welding Generator Intermediate Frequency

Product Details:

Place of Origin:	CHINA
Brand Name:	RAMS
Certification:	CE
Model Number:	AXQ-300A

Payment & Shipping Terms:

Minimum Order Quantity:	100 units mixed model
Packaging Details:	Carton/Pallet/Wooden case
Delivery Time:	25 work days
Payment Terms:	T/T, L/C

Contact Now

5KW 300A Gasoline Welding Generator Intermediate Frequency

Description

Model Number:	AXQ-300A	Auxiliary Power:	DC220V/5KW
Welding Mode:	Manual Metal Arc Welding	Welding Current:	40-250A
Engine:	199F	Fuel Tank Capacity:	40L
Continuous Running:	8 H	Noise:	78Dba/7m
High Light:	Gasoline Intermediate Frequency Welding Generator , 300A Gasoline Welding Generator , 5KW Gasoline Welding Generator

300A Gasoline Intermediate Frequency Welding Generator

MOQ:2units mixed model

Feature:
1.Using rare earth permanent magnet motor to adjust the current, the current is smooth, the response

speed is fast, the performance is 30% higher than that of ordinary excitation power generation welder.
2.Coaxial integrated structure, eliminating intermediate transmission link, low failure rate.
3. Optional oil protection system and decompression shoulder system, customer service engine damage

caused by lack of oil and low temperature shoulder movement difficulties.
4. Rare earth permanent magnet generator makes the whole machine lighter than the same welding machine

and convenient for field operation.
5.The machine is equipped with 5KW DC 220V output, which can be used for lighting, corneal machine, grinder

and other tools.

Model No.		AXQ-300A
generator	Welding mode	Manual metal arc welding
	No load volt	90V
	Welding volt	20-28V
	Welding current	40-250A
	Load continuous rate	80%
	Auxiliary power	DC220V/5KW
engine	engine	199F
	Engine type	Single cylinder, 4 stroke, forced air cooled, ohv
	Output power	2
	Bore x stroke	96x86mm
	displacement	670cc
	Fuel consumption	312g/KW.h
	Ignition mode	electronic
	startup	electric
	fuel	Above 90#
	Oil capacity	1.5L
others	Fuel tank capacity	40L
	battery	12V-32AH free maintenance battery
	Oil alarm system	yes
	Fuel meter	yes
	Control panel	Volt-meter, ampere-meter
	wheels	yes
	noise	78Dba/7m
	Continuous running	8h
	size	840x650x840mm
	Net weight	125kg

MOQ:2units mixed model
