Product Details:
Place of Origin: CHINA
Brand Name: RAMS
Certification: CE
Model Number: AXQ-130A
Payment & Shipping Terms:
Minimum Order Quantity: 100 units mixed model
Packaging Details: Carton/Pallet/Wooden case
Delivery Time: 25 work days
Payment Terms: T/T, L/C

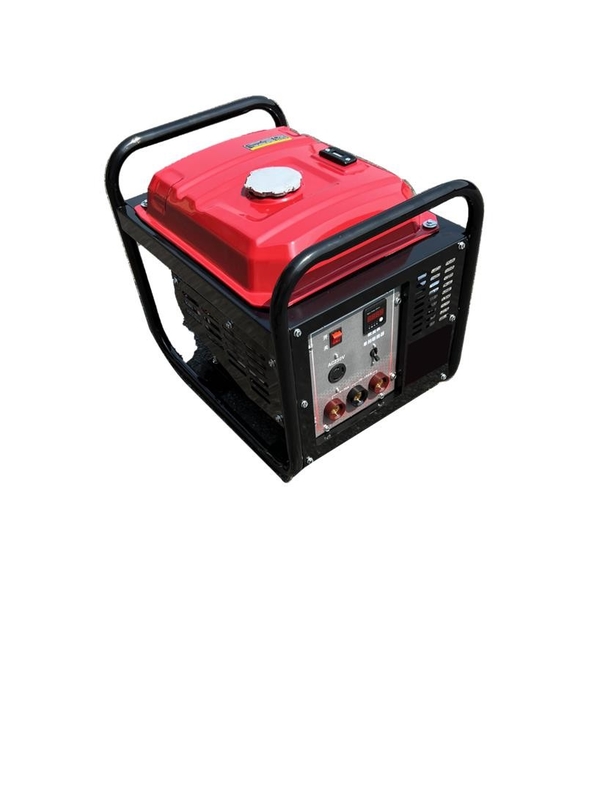

Engine Driven Welder Generator Manual 130A Inverter AC

Description
Model Number: AXQ-130A Auxiliary Power: AC220V/1KW
No Load Volt: 60-70V Welding Volt: 20-28V
Welding Current: 130A Fuel Tank Capacity: 6L
Engine: R225-V Displacement: 225 CC
High Light:

Engine Driven Welder Generator

,

130A Inverter AC Welder Generator

,

AC220V Welder Generator

130A Inverter AC Engine Driven Welder Generator Manual welding

MOQ:24units mixed model





Characteristic:



1. Rare earth permanent magnet alternator is adopted, with smooth current and fast response speed.



2. The performance is 30% higher than that of ordinary excitation generator.



3. Light weight and small volume.



4. Coaxial integrated structure, eliminating intermediate transmission link and low failure rate.



5. The rare earth permanent magnet generator makes the whole machine lighter than the same welding machine,

which is easy to operate and convenient for field operation.





Model No. AXQ-130A
generator Welding mode manual welding
No load volt 60-70V
Welding volt 22-28V
Welding current 130A
load continuous rate 60%
Auxiliary power AC220V/1KW
engine engine R225-V
Engine type Single phase,4 stroke,air forced,ohv
Output power 7HP
Bore x stroke 70x55mm
displacement 225CC
Fuel consumption 312g/KW.h
Ignition mode Electronic
startup recoil
Fuel 90# petrol
Oil capacity 0.6L
others Fuel tank capacity 6L
Battery no
Oil alarm system yes
wheels yes
Model No. 65 dBA/7m
generator Welding mode 600*445*500mm
No load volt 39



Engine Driven Welder Generator Manual 130A Inverter AC 0
