1500r / Min Silent Power Generator Diesel 4 Cylinder Brushless Self Excitation

I'm Online Chat Now

1500r / Min Silent Power Generator Diesel 4 Cylinder Brushless Self Excitation

1500r / Min Silent Power Generator Diesel 4 Cylinder Brushless Self Excitation
1500r / Min Silent Power Generator Diesel 4 Cylinder Brushless Self Excitation

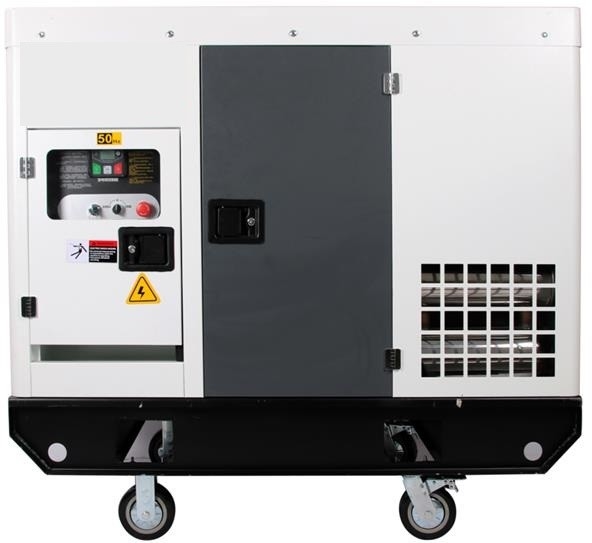

Large Image :  1500r / Min Silent Power Generator Diesel 4 Cylinder Brushless Self Excitation

Product Details:
Place of Origin: CHINA
Brand Name: RAMS
Certification: CE
Model Number: RS-20GF
Payment & Shipping Terms:
Minimum Order Quantity: 100 units mixed model
Packaging Details: Carton/Pallet/Wooden case
Delivery Time: 25 work days
Payment Terms: T/T, L/C

1500r / Min Silent Power Generator Diesel 4 Cylinder Brushless Self Excitation

Description
Item: Diesel Silent Generator The Prime Power: 20 KW
Rated Frequency: 50 HZ Rated Voltage: 400 V
Phase & Connection: 3 Phase 4 Wire Star Type Connections Startup: DC12V Electric Start
RPM: 1500r/min Noise: ≤75dB/7m
High Light:

Self Excitation Silent Power Generator

,

1500r/min Silent Power Generator

,

400 V Silent Power Generator

20KW Silent Diesel 4 Cylinder Generator Brushless self-excitation

MOQ:2units mixed model



Features:


1.4 cylinder water cooled engine, strong performance, low emission, stable.
2.100% copper brushless alternator, strong output power,reliable, more convenient to maintain.
3.Anti-corrosion ,water-proof, cold rolled steel canopy equipped with wave sound- absorbing cotton,

it makes the noise very low, the noise is about 70 dBA/7m, it is suitable for the populous place to use

and that the noise requirement is very strict place to use.



Model No. RS-20GF
alternator Excitation mode Brushless self-excitation
The prime power 20KW
Rated frequency 50Hz
RPM 1500r/min
Rated voltage 400V
Phase & connection 3 phase 4 wire star type connections
Insulation grade H
Safeguard grade IP23
engine engine WP2.3D25E200
Power/h 25KW
RPM 1500r/min
Startup DC12V electric start
Engine type Inline,direct injection
Intake mode Natural intake
stroke 4
Cylinder No. 4
Bore x stroke 80x90mm
Governing control Electronic governing
displacement 2.289L
fuel consumption ≤200g/kWh
Oil consumption ≤1.5g/kWh
genset frequency 50Hz
Rated voltage 400V
The prime power 18KW
The standby power 20KW
Rated ampere Each phase 26.0A
Max. ampere Each phase 29.0A
Phase No. 3 phase
noise ≤75dB/7m
size 1500x870x1200mm
Net weight 610KG





1500r / Min Silent Power Generator Diesel 4 Cylinder Brushless Self Excitation 0
