5000W 50Hz 4 In I Multi Function Welders Air Compressor Lighting Tower Generator

5000W 50Hz 4 In I Multi Function Welders Air Compressor Lighting Tower Generator
5000W 50Hz 4 In I Multi Function Welders Air Compressor Lighting Tower Generator 5000W 50Hz 4 In I Multi Function Welders Air Compressor Lighting Tower Generator

Large Image :  5000W 50Hz 4 In I Multi Function Welders Air Compressor Lighting Tower Generator

Product Details:
Place of Origin: CHINA
Brand Name: RAMS
Certification: CE
Model Number: RG5000M
Payment & Shipping Terms:
Minimum Order Quantity: 100 units mixed model
Packaging Details: Carton/Pallet/Wooden case
Delivery Time: 25 work days
Payment Terms: T/T, L/C

5000W 50Hz 4 In I Multi Function Welders Air Compressor Lighting Tower Generator

Description
Item: Generator Welder Air Compressor Lighting Tower 4 In I Multi Function Welders Engine Model: Kohler, Command PRO CH440
Engine Type: 4 Stroke, Air Cooled,OHV Engine Displacement: 429cc / 14HP
High Light:

5000W Multi Function Welders

,

50Hz Multi Function Welders

,

5000W 4 in 1 generator

Generator Welder Air Compressor Lighting Tower 4 In I Multi Function Welders

MOQ:12units mixed model



What if a machine could do four jobs?

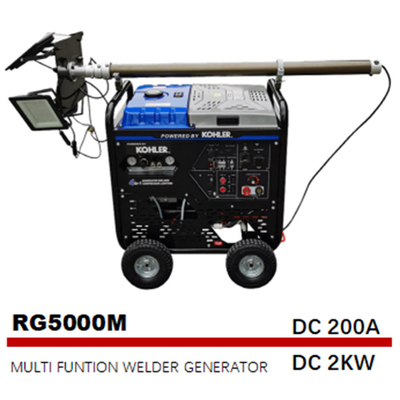

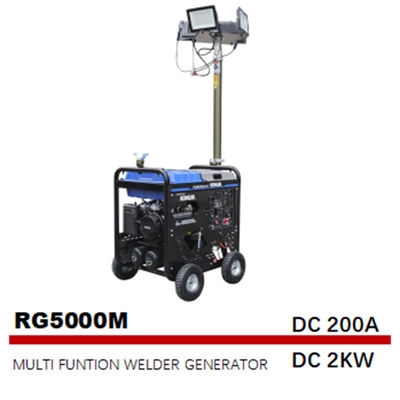

Now you can use the ram kohler power of 5000 w power package. This convenient unit is equipped with 180 amps arc welding machine, 5 kw generators, air compressors and lighting tower. A machine has four basic tools.

Ideal farm maintenance, mechanical fault maintenance, construction site, even as the standby family or freezer power.

4 high-performance solution on a solid and practical bag, the answer to the workstation is you, if you need a more reliable power package - generator, welder, the compressor and the charger by kohler engine electric start.



Features:



OHV design to improve the combustion efficiency

Variable ignition timing, the result of the high power output, reduce fuel consumption and exhaust emissions performance

Easy to start and automatic pressure relief system and easy to grip handle soft kick start

High quality materials and special parts to ensure reliable for long-term use

In accordance with the world's most stringent environmental regulations

Ensure low oil consumption

Reduce vibration and noise levels.



4 in 1 Multi-Functional Machinery
Generator Rated Output Watts 5000W
Maximum Output Watts 5500W
Power Factor 1
Rated Voltage 220V
Frequency 50Hz
Alternator Winding 100% Copper Winding
Engine Model Kohler, Command PRO CH440
Engine Displacement 429cc / 14HP
Bore x Stroke/mm 89x69
Engine Type 4 Stroke, Air Cooled, OHV
Engine RPM 3000 RPM
Lubrication Method Splash Sump
Digital Meter YES
Starting Method Electric Key Start
Battery YES
Battery Size 12AH
Low Oil Shutdown YES
Fuel gauge Yes - In Tank
Fuel Tank Capacity (Litters) 30L
Wheel YES
Welder Rated Duty Cycle 0.5
Open Circuit Voltage DC75V
Welding Current Range 50-200A
Rated Current/Voltage 180A / 27 .2V
Welding Rod 1.6-5.0mm
Air Compressor Tank Volume 20L
Flow Capacity 100L/min
Pressure Rang 0.6-0.8MPA
Stage 1
Lighting Tower Lighting Lamp LED / 4x100W
Luminous Flux 80- 100lm/W
Packing Info Maintenance Kit YES
Package Dimensions (L*W*H)(mm) 851*573*780 mm
Net Weight (No Packaging) 169kg
Gross Weight (With Packaging) 181kg
Load Quantity 40'/20' Container 90/44



MOQ:12units mixed model



SPECIFICATIONS



Power Rating: 5000KW
Cont. Output Watts: 5500KW
Engine Model:
Kohler, Command PRO CH440
Phase: 1-Phase
Starting System: Recoil / Electric Start
Fuel Tank Capacity: 30 L
Welder: 180 Amp (AC)
Duty Cycle: 60%
Air Tank Capacity:20 L

Lighting Lamp:LED / 4x100W
Fuel Type: Unleaded
Diam.:
851*573*780 mm (L x W x H)
Weight: 169 kg



5000W 50Hz 4 In I Multi Function Welders Air Compressor Lighting Tower Generator 0
