Product Details:
|
| Item: | Gasoline Welding Generators | DC Welding Current: | 210A |
|---|---|---|---|
| DC Welding Voltage: | 70-75V | Auxiliary Output: | AC 3kw |
| Welding Current Range: | 50-210A | Duty Cycle At Rated Amps Avalible: | 60% @210A |
| Engine Power: | 15HP | Ignition System: | CDI |
| High Light: | 15HP Manual Metal Arc Welding Equipment,3kw Manual Metal Arc Welding Equipment,15HP Manual Metal Arc Welding Machine |
||

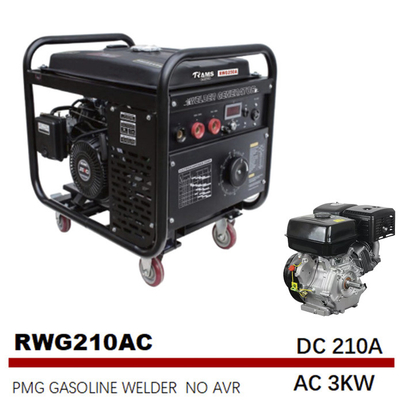

RWG210AC 210A Arc Medium Frequency Petrol Welding Generators
MOQ:12units mixed model
Feature
• Wide range of application, can be used as a professional oil and gas pipeline construction units, railways, municipal pipe network, chemical plants, power plants, steel plant construction and emergency maintenance.
• Medium frequency three-phase rectifier, smooth current, good dynamic characteristics, fast response (1-3ms) to meet different welding requirements, and suitable for all kinds of acid, alkaline electrode and argon arc welding operations.
• Permanent magnet technology, with small size, light weight, small iron loss, high efficiency, efficiency up to 90%.
• Abandon the IGBT(insulated gate bipolar transistor) with high failure rate and adopt the built-in control mode, which greatly improves the reliability of the control system.
• Dual output, can meet the requirements of welding and using small power tools.
• Let our products spread in every corner of the world, let our service warm every user.
| Unit Specification | |
| DC Welding Current | 210A |
| Non-loading Voltage(V) | 70-75 |
| Welding Current Range | 50-210 |
| Duty Cycle at rated amps avalible | 60% @210A |
| Welding Process | SMAW(MMA / GTAW(TIG) |
| Welding Rod diameter | 1.5-4.0mm |
| Fuel Tank Capacity | 25L |
| Fuel type | Gaosline |
| Generator Specification | |
| Power rated output | DC 1.6kw |
| Auxiliary Output | AC 3kw |
| Voltage | 120V/220V/240V |
| Receptacles | 16A/9A/8A |
| Dimensions&Weights | |
| Carton size(mm) | 720*540*570mm |
| Net/Gross Weight(kg) | 80.5/83kgs |
| Engine Specification | |
| Engine Model | 190FE |
| Start Method | Electric start |
| Borex stroke mm | 92*75 |
| Horsepower/displacement | 420cc |
| Ignition System | CDI |
