Product Details:
|
| Item: | Gasoline Welding Generators | DC Welding Current: | 250A |
|---|---|---|---|
| Auxiliary Output: | AC 3kw | Duty Cycle At Rated Amps Avalible: | 60% @250A |
| Fuel Tank Capacity: | 12.5L | Engine Model: | 195FE |
| Fuel Type: | Gasoline | DC Welding Voltage: | 70-75V |
| High Light: | PMG Ac Dc Engine Driven Welder,195FE Ac Dc Engine Driven Welder,195FE Permanent Magnet Generator |
||

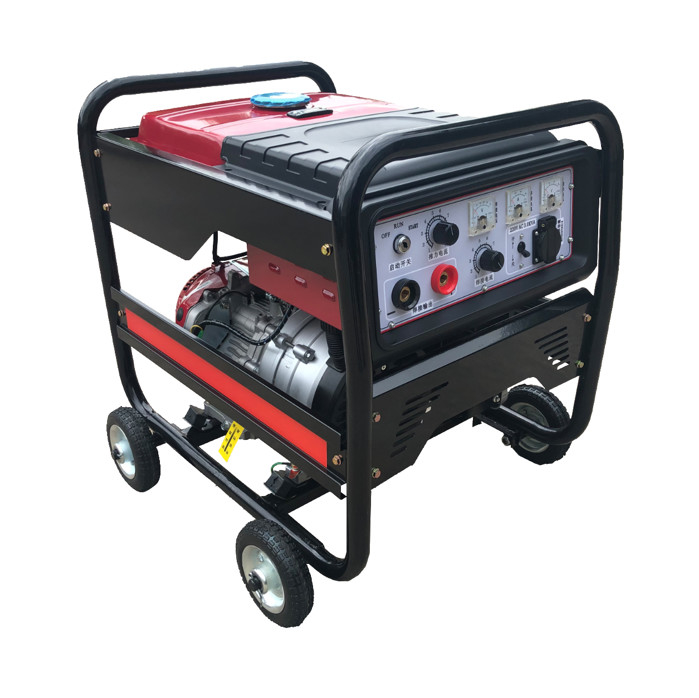

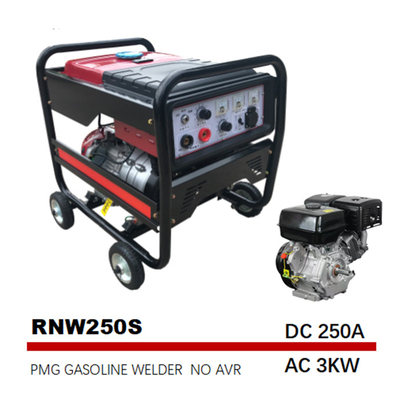

RNW250S Petrol Welding Generators Medium Frequency Permanent Magnet
MOQ:12units mixed model
Description
• Applicability is wide and can be used as a major units of oil and gas pipeline construction, railway, municipal pipeline, chemical plants, power plants, steel mills in construction and emergency maintenance.
• Using intermediate frequency three-phase rectifier, current is smooth, good dynamic characteristics, fast response speed (1-3 ms). Can meet different welding requirements, and are suitable for all kinds of acidic and alkaline electrode and argon arc welding operation.
• By adopting the technology of permanent magnet, has small volume, light weight, small iron loss, high efficiency, efficiency can reach 90%.
• Abandoned the higher failure rate of IGBT (insulated gate bipolar transistor) adopted invagination type control mode, greatly improve the reliability of the control system.
• Working condition of dual output, at the same time meet the requirements of welding and the use of small electric tools.
• Mobile wheel sets, mobile convenience.
• The project has been the Ministry of Science and Technology innovation fund support.
| Performance Data | WELDER GENERATOR |
| Unit Specification | |
| DC Welding Current | 250A |
| Non-loading Voltage(V) | 70-75 |
| Welding Current Range | 70-250 |
| Duty Cycle at rated amps avalible | 60% @250A |
| Welding Process | SMAW(MMA / GTAW(TIG) |
| Welding Rod diameter | 2.0-6.0mm |
| Fuel Tank Capacity | 12.5L |
| Fuel type | Gasoline |
| Generator Specification | |
| Auxiliary Output | AC 3kw |
| Voltage | 120V/220V/240V |
| Receptacles | 1ps 16A |
| Dimensions&Weights | |
| Carton size(mm) | 730*530*640mm |
| Net/Gross Weight(kg) | 113.5/117kgs |
| Q'ty 20"/40"/40"H | 93/198/264 |
| Engine Specification | |
| Engine Model | 195FE |
| Start Method | Electric start |
| Borex stroke mm | 92*75 |
| Horsepower/displacement | 531cc |
| Ignition System | Compression Ignition |
MOQ:12units mixed model
