Product Details:
|
| Item: | Diesel Welder Generator | DC Welding Current: | 210A |
|---|---|---|---|
| Auxiliary Output: | DC 2kw | DC Welding Voltage: | 70-75 |
| Welding Current Range: | Unadjustable | Duty Cycle At Rated Amps Avalible: | 60% @210A |
| Welding Process: | SMAW(MMA / GTAW(TIG) | Fuel Tank Capacity: | 12.5L |
| Fuel Type: | Diesel | Voltage: | 120V/220V/240V |
| Engine Model: | 192FE | Start Method: | Electric Start |
| High Light: | 210A Engine Driven Welders,DC 2kw Engine Driven Welders,210A Permanent Magnet Generator |
||

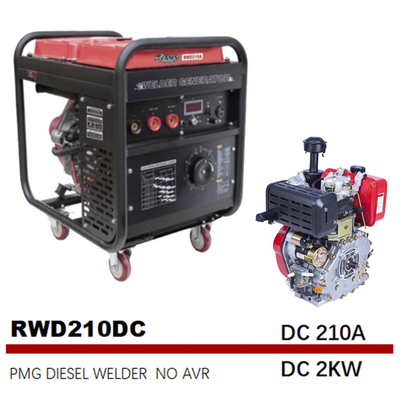

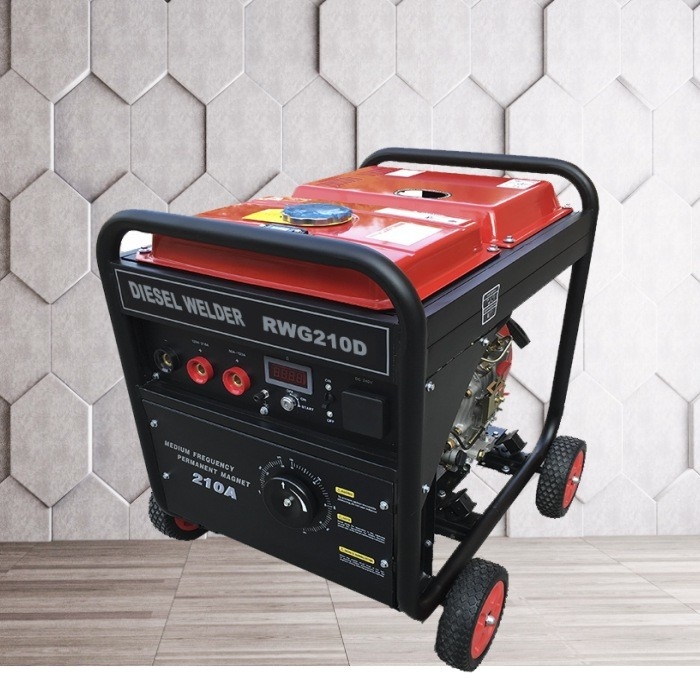

RWD210DC Medium Frequency Permanent Magnet Welder Generators
MOQ:12units mixed model
RWD210DC Medium Frequency Permanent Magnet Welder Generator is a great budget option for welder generators, costing about a quarter what the top of the line models cost, while still being a quite respectable generator.The main rub here is it only has a 2000 watt power output, meaning it’s really only going to power one, maybe two things. That makes it perfect for smaller jobs, like farm work, where welding is going to be an infrequent but occasionally critical task that needs to be done far away from a power source.Keep in mind this is an inverter generator, which makes it fairly energy efficient, but may be less reliable than traditional transformer generators.Still, for what it is (and especially for the price) this generator is great, It comes with a TIG welding starter kit and is compatible with all welders (MMA, MIG, Stick, TIG, and flux core). It is an electric start (push button) generator, making it easy to get up and going without any finicky clutch and pull string systems.
Features:
• Can weld 1/3, 1/4, 3/8 inches
• Permanent magnet generator (PMG)
• The inverter generator with stable sine wave is the most stable welding
• Weld and run power tools at the same time
| Unit Specification | |
| DC Welding Current | 210A |
| Non-loading Voltage(V) | 70-75 |
| Welding Current Range | 50-210 |
| Duty Cycle at rated amps avalible | 60% @210A |
| Welding Process | SMAW(MMA / GTAW(TIG) |
| Welding Rod diameter | 1.5-4.0mm |
| Fuel Tank Capacity | 12.5L |
| Fuel type | diesel |
| Generator Specification | |
| Power rated output (single phrase) | DC 1.6kw |
| Auxiliary Output(Optional) | DC 2kw |
| Voltage | 120V/220V/240V |
| Receptacles | 1ps 16A |
| Dimensions&Weights | |
| Carton size(mm) | 730*530*640mm |
| Net/Gross Weight(kg) | 108/112kgs |
| Q'ty 20"/40"/40"H | 93/198/264 |
| Engine Specification | |
| Engine Model | 192FE |
| Start Method | Electric start |
| Borex stroke mm | 92*75 |
| Horsepower/displacement | 490cc |
| Ignition System | Compression Ignition |
MOQ:12units mixed model
