PMG Diesel Engine Driven Welding Machine Electric Start SMAW Process

I'm Online Chat Now

PMG Diesel Engine Driven Welding Machine Electric Start SMAW Process

PMG Diesel Engine Driven Welding Machine Electric Start SMAW Process
PMG Diesel Engine Driven Welding Machine Electric Start SMAW Process PMG Diesel Engine Driven Welding Machine Electric Start SMAW Process

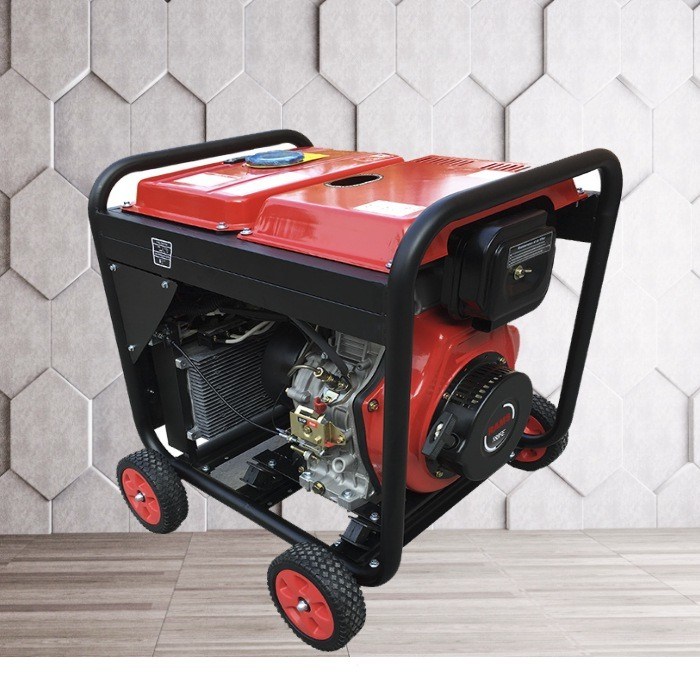

Large Image :  PMG Diesel Engine Driven Welding Machine Electric Start SMAW Process

Product Details:
Place of Origin: CHINA
Brand Name: RAMS
Certification: CE
Model Number: RWD230DC
Payment & Shipping Terms:
Minimum Order Quantity: 100 units mixed model
Packaging Details: Carton/Pallet/Wooden case
Delivery Time: 25 work days
Payment Terms: T/T, L/C

PMG Diesel Engine Driven Welding Machine Electric Start SMAW Process

Description
Item: Diesel Welding Generators DC Welding Current: 230A
Auxiliary Output: DC 2kw Non-loading Voltage(V): 70-75
Welding Current Range: 50-230 Duty Cycle At Rated Amps Avalible: 60% @230A
Welding Process: SMAW(MMA / GTAW(TIG) Welding Rod Diameter: 1.5-4.0mm
Fuel Tank Capacity: 12.5L Fuel Type: Diesel
Power Rated Output (single Phrase): DC 1.6kw Voltage: 120V/220V/240V
Receptacles: 1ps 16A Engine Model: 192FE
Start Method: Electric Start Horsepower/displacement: 490cc
High Light:

PMG Diesel Driven Welding Machine

,

SMAW Diesel Engine Driven Welding Machine

,

PMG Diesel Engine Driven Welding Machine

230A Medium Frequency Permanent Magnet Generator Electric start

MOQ:12units mixed model





The 230A Medium Frequency Permanent Magnet Generator Electric start is designed for high power and durability. Apply to the farm, construction site, or any need power and welding work. This welding machine 230 ampere output current, duty ratio 60%, suitable for welding electrode diameter 1.5 4.0 mm. The wheels of the movable suite make portable field welding has maneuverability, also can be used as emergency standby power when necessary. Have incredible 15 horsepower engine, 2000 watts of dc output, the welder generator will provide you with the required power, whether you need it. The 230A Medium Frequency Permanent Magnet Generator Electric start is an excellent tool for applying for a job in your workshop, pasture or farm and comes with a 1-year engine warranty.



Feature

• 230 apms of DC welding power
• NO AVR and brush , lowest failure rate
• High- frequency continuous weld 1.5-4.0mm Rod
• welding and generatoring can be used at the same time
• Noise less than 75db(7m)
• Ideal for a wide variety of utility welding application

Performance Data   WELDER GENERATOR
Unit Specification
DC Welding Current   230A
Non-loading Voltage(V)   70-75
Welding Current Range   50-230
Duty Cycle at rated amps avalible   60% @230A
Welding Process   SMAW(MMA / GTAW(TIG)
Welding Rod diameter   1.5-4.0mm
Fuel Tank Capacity 2.75gal 12.5L
Fuel type   diesel
Generator Specification
Power rated output (single phrase)   DC 1.6kw
Auxiliary Output(Optional)   DC 2kw
Voltage   120V/220V/240V
Receptacles   1ps 16A
Dimensions&Weights
Carton size(mm) 28.74*20.87*25.2in 730*530*640mm
Net/Gross Weight(kg) 238/247Ibs 108/112kgs
Q'ty 20"/40"/40"H   93/198/264
Engine Specification
Engine Model   192FE
Start Method   Electric start
Borex stroke mm   92*75
Horsepower/displacement   490cc
Ignition System   Compression Ignition



MOQ:12units mixed model
