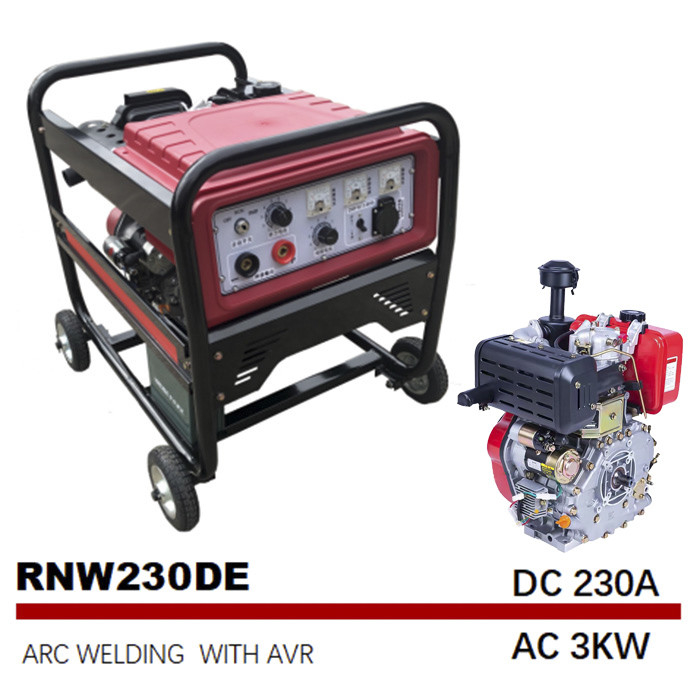

230A Arc Diesel Engine Driven Welders 12.5L Small Tank SMAW

I'm Online Chat Now

230A Arc Diesel Engine Driven Welders 12.5L Small Tank SMAW

230A Arc Diesel Engine Driven Welders 12.5L Small Tank SMAW
230A Arc Diesel Engine Driven Welders 12.5L Small Tank SMAW

Large Image :  230A Arc Diesel Engine Driven Welders 12.5L Small Tank SMAW

Product Details:
Place of Origin: CHINA
Brand Name: RAMS
Certification: CE
Model Number: RNW230DE
Payment & Shipping Terms:
Minimum Order Quantity: 100 units mixed model
Packaging Details: Carton/Pallet/Wooden case
Delivery Time: 25 work days
Payment Terms: T/T, L/C

230A Arc Diesel Engine Driven Welders 12.5L Small Tank SMAW

Description
Item: Diesel Welding Generators DC Welding Current: 230A
Auxiliary Output: DC/AC 3kw Non-loading Voltage(V): 70-75
Welding Current Range: 50-230 Duty Cycle At Rated Amps Avalible: 60% @230A
Welding Process: SMAW(MMA / GTAW(TIG) Welding Rod Diameter: 1.5-4.0mm
Fuel Tank Capacity: 12.5L Fuel Type: Diesel
Power Rated Output (single Phrase): DC 1.6kw Voltage: 120V/220V/240V
Receptacles: 1ps 16A Engine Model: 192FE
Start Method: Electric Start Horsepower/displacement: 490cc
High Light:

SMAW Engine Driven Welders

,

230A Engine Driven Welders

,

SMAW Diesel Driven Welders

RNW230DE 230A Arc Welding Generator DIESEL Medium Frequency Small Tank

MOQ:12units mixed model





The RNW230DE 230A Arc Welding Generator DIESEL Medium Frequency Small Tank is light in weight, small in size, easy to move, can be used for welding, also can be used as a generator, suitable for welding construction and emergency repair in the field without electricity. Let you use the rest assured, if there is one you need, please do not miss, just need you a phone call, we wholeheartedly for your service, choose Rui Shi welding machine BELIEVE that we will not let you down. The RNW230DE 230A Arc Welding Generator DIESEL Medium Frequency Small Tank has the function of automatic anti-stick, quick arc, small splash, arc elasticity, strong penetration, welding adaptability to all kinds of electrode, all kinds of positions. Suitable for acid electrode, low hydrogen alkaline electrode, no matter which kind of electrode can ensure the welding quality. Excellent dynamic characteristics, easy arc initiation, small splash during welding, suitable for all-position welding requirements. To meet the requirements of users for various materials and electrodes.



Advantages of diesel power welder



•Wide range of use

•fire safety

•Low harmful emissions

•Reliable and durable.

•When fuel economy, high thermal efficiency and working conditions change, the curve of fuel consumption rate is relatively flat, and it is also economical under low load.


Performance Data   WELDER GENERATOR
Unit Specification
DC Welding Current   230A
Non-loading Voltage(V)   70-75
Welding Current Range   50-230
Duty Cycle at rated amps avalible   60% @230A
Welding Process   SMAW(MMA / GTAW(TIG)
Welding Rod diameter   1.5-4.0mm
Fuel Tank Capacity 2.75gal 12.5L
Fuel type   diesel
Generator Specification
Power rated output (single phrase)   DC 1.6kw
Auxiliary Output(Optional)   DC/AC 2-3kw
Voltage   120V/220V/240V
Receptacles   1ps 16A
Dimensions&Weights
Carton size(mm) 28.74*20.87*25.2in 730*530*640mm
Net/Gross Weight(kg) 238/247Ibs 108/112kgs
Q'ty 20"/40"/40"H   93/198/264
Engine Specification
Engine Model   192FE
Start Method   Electric start
Borex stroke mm   92*75
Horsepower/displacement   490cc
Ignition System   Compression Ignition



MOQ:12units mixed model
