Product Details:
|
| Item: | Diesel Welding Generators | DC Welding Current: | 210A |
|---|---|---|---|
| Auxiliary Output: | AC 3kw | DC Welding Voltage: | 70-75 |
| Welding Current Range: | Unadjustable | Duty Cycle At Rated Amps Avalible: | 60% @210A |
| Welding Process: | SMAW(MMA / GTAW(TIG) | Fuel Tank Capacity: | 12.5L |
| Fuel Type: | Diesel | Voltage: | 120V/220V/240V |
| Engine Model: | 192FE | Start Method: | Electric Start |
| High Light: | 210A Engine Welder Generator,12.5L Engine Welder Generator,210A Engine Powered Welder |
||

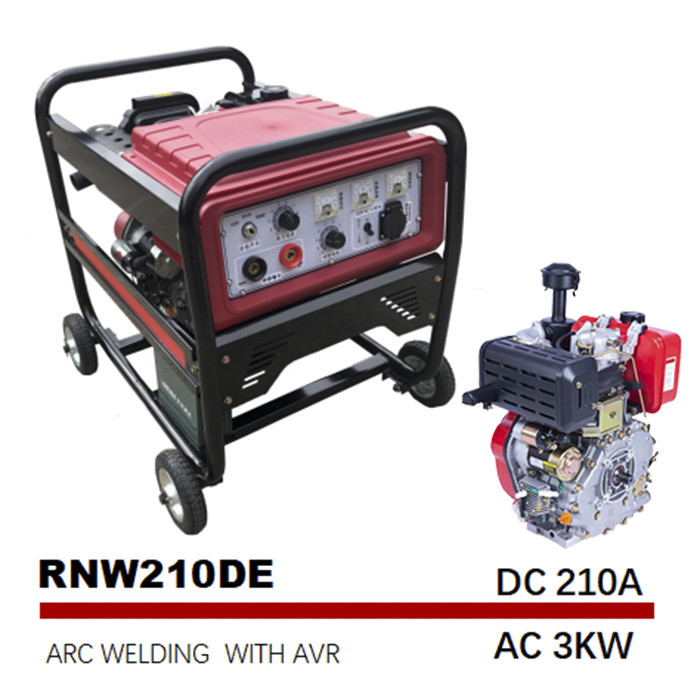

210A Medium Frequency Arc Welding Generator Electric start
MOQ:12units mixed model
Features:
| Unit Specification | |
| DC Welding Current | 210A |
| Non-loading Voltage(V) | 70-75 |
| Welding Current Range | 50-210 |
| Duty Cycle at rated amps avalible | 60% @210A |
| Welding Process | SMAW(MMA / GTAW(TIG) |
| Welding Rod diameter | 1.5-4.0mm |
| Fuel Tank Capacity | 12.5L |
| Fuel type | diesel |
| Generator Specification | |
| Power rated output (single phrase) | DC 1.6kw |
| Auxiliary Output(Optional) | AC 3kw |
| Voltage | 120V/220V/240V |
| Receptacles | 1ps 16A |
| Dimensions&Weights | |
| Carton size(mm) | 730*530*640mm |
| Net/Gross Weight(kg) | 108/112kgs |
| Q'ty 20"/40"/40"H | 93/198/264 |
| Engine Specification | |
| Engine Model | 192FE |
| Start Method | Electric start |
| Borex stroke mm | 92*75 |
| Horsepower/displacement | 490cc |
| Ignition System | Compression Ignition |
MOQ:12units mixed model
