Product Details:
|
| Item: | Diesel Welding Generators | DC Welding Current: | 230A |
|---|---|---|---|
| DC Welding Voltage: | 70-75V | Auxiliary Output: | AC 3kw |
| Welding Current Range: | 60-230A | Duty Cycle At Rated Amps Avalible: | 60% @210A |
| Fuel Tank Capacity: | 25L | Receptacles: | 1ps 16A |
| Engine Model: | 190FE | Start Method: | Electric Start |
| High Light: | 230A Diesel Ac Generator,230A Ac Dc Welder Generator,190FE Ac Dc Welder Generator |
||

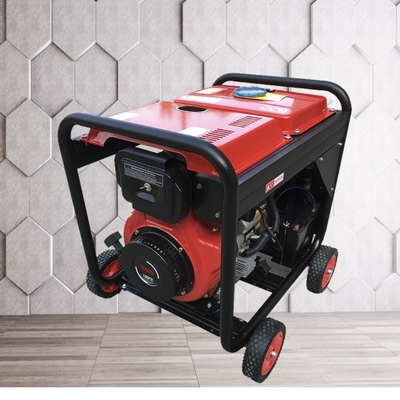

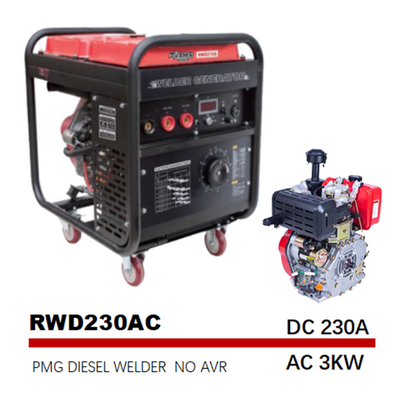

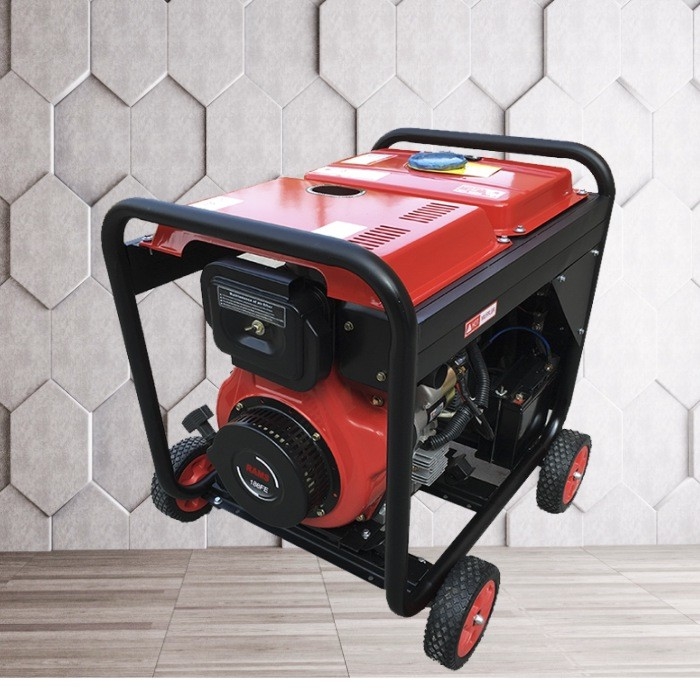

RWD230AC 230A Arc Medium Frequency DIESEL Welding Generators
MOQ:12units mixed model
• Electric welding and power generation of one machine, increase cylinder diameter stroke, stable performance, fuel - saving and durable
• Full copper large motor, high density pure copper coil, low resistance consumption, small distortion, stable waveform, welding machine splash small continuous arc
• Large fuel tank for long hours
• Intelligent protection system, prevent burning machine, overheat overload protection, etc
• Wide range of welding, functional, maintenance engineering outdoor construction, factory construction, construction, manufacturing, ship
| Unit Specification | ||
| DC Welding Current | 230A | |
| Non-loading Voltage(V) | 70-75 | |
| Welding Current Range | 60-210 | |
| Duty Cycle at rated amps avalible | 60% @210A | |
| Welding Process | MMA /TIG) | |
| Welding Rod diameter | 1.5-4.0mm | |
| Fuel Tank Capacity | 5.5gal | 25L |
| Fuel type | Diesel | |
| Generator Specification | ||
| Power Max output (single phrase) | AC 3kw | |
| Voltage | 120V/220V/240V | |
| Receptacles | 1ps 16A | |
| Dimensions&Weights | ||
| Carton size(mm) | 28.35*21.26*22.44in | 720*540*570mm |
| Net/Gross Weight(kg) | 183/188.5Ibs | 83/85.5kgs |
| Q'ty 20"/40"/40"H | 128/256/256 | |
| Engine Specification | ||
| Engine Model | 190FE Gasoline engine | |
| Start Method | Electric start | |
| Borex stroke mm | 90*66 | |
| Horsepower/displacement | 420cc | |
| Ignition System | CDI |
MOQ:12units mixed model
